P-L9-018-127FF-SB-T1108 - Datasheet

MBA

Category Information

Pulleys - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Taperlock

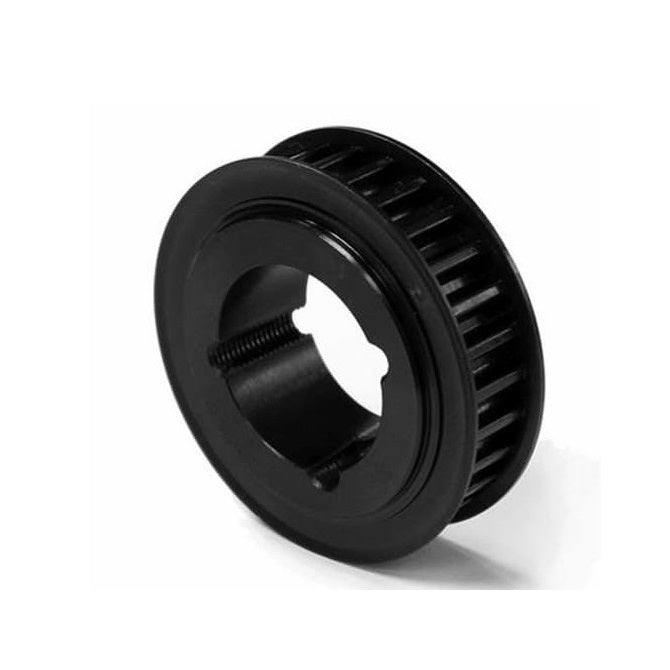

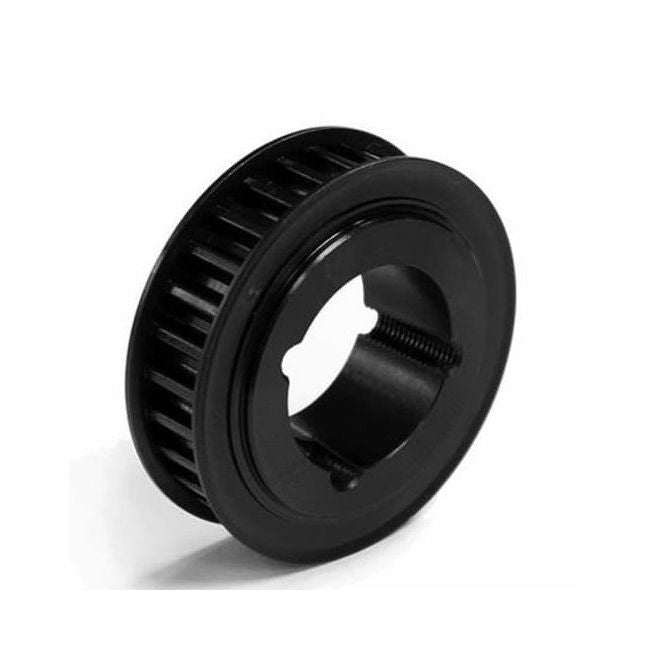

Taperlock 12.7mm Wide 9.525mm Pitch L Inch Timing Pulleys. Timing Pulleys to suit L Series 9.525mm Pitch Timing Belts. Taperlock bush required for bore.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Black oxide coated steel or cast iron
  • Match with a taperlock to suit your bore requirements

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Number of Teeth : 18
  • Max Belt Width 12.70 mm
    (Equiv. 0.5 in.)
  • Bore (d) Determined by Taperlock Series Series
  • Bore Type Suits Taperlock 1108
  • Type 2BF

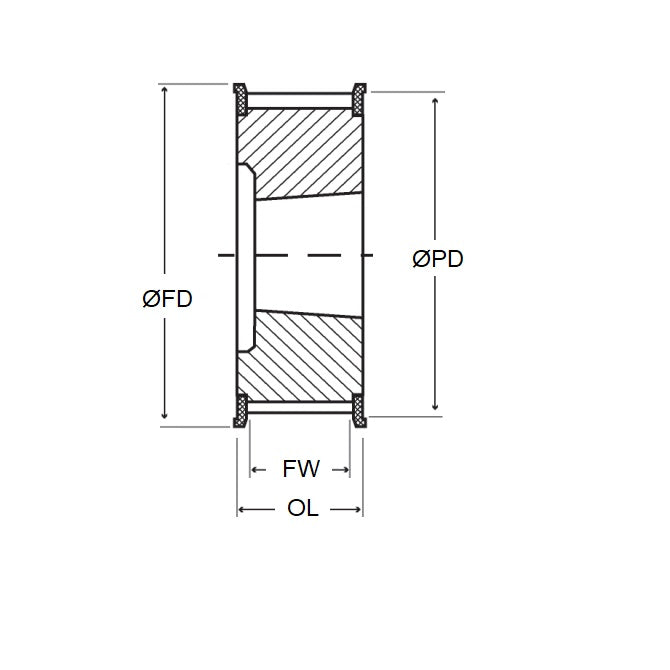

  • Pitch Dia. (D) 54.55 mm
  • Flange Diameter (FD) 60.5 mm
  • Overall Length 19.8 mm
  • Hub Diameter (HD) 44.8 mm
  • Material Steel - Black Oxide
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates TL18L050-1108
  • TL18L0501108
  • MSK37
  • MSK-37
