Miniature Bearings Australia
GR-V20-10-1829-10-C - Datasheet
MBA
Category Information

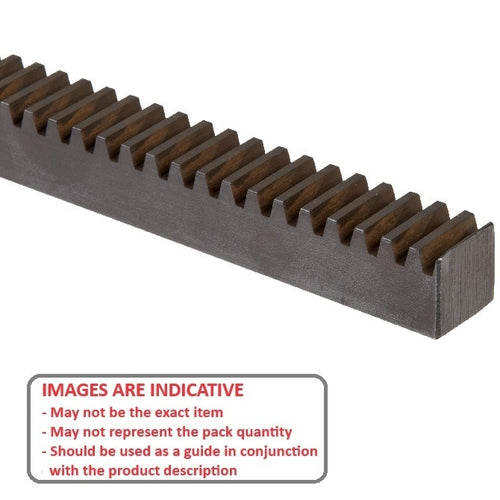

Gears - Rack - Imperial - 20DP20DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 20 DP. Approx 3.99mm between teeth.
Product Data
- Length (L)
:
1828.8
mm
(Equiv. 72 in.) - Face Width (fw)
9.525
mm
(Equiv. 0.375 in.) - Height (h)
9.525
mm
(Equiv. 0.375 in.) - Pitch Type 20DP - 14.5 PA
- Pitch Height (ph) 8.255 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Square
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L509-6
- L5096
- GE2001
- GE-2001
