WLB180-242-25-ST - Datasheet
MBA
Category Information

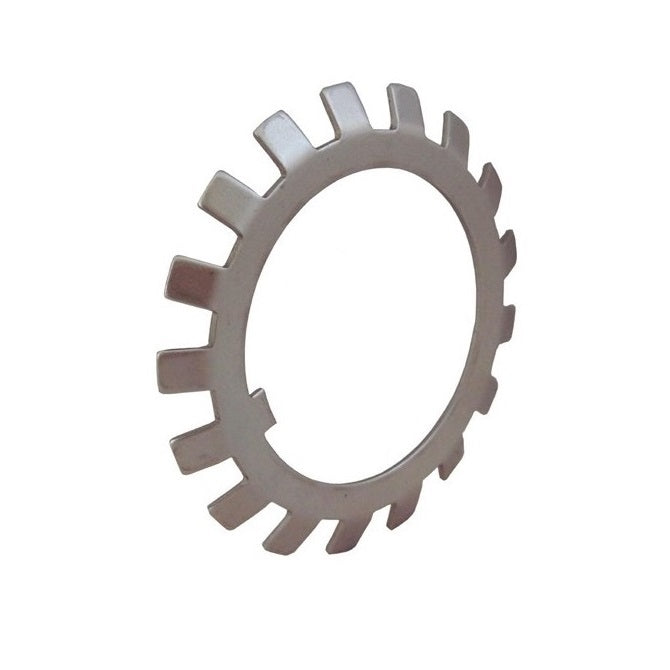

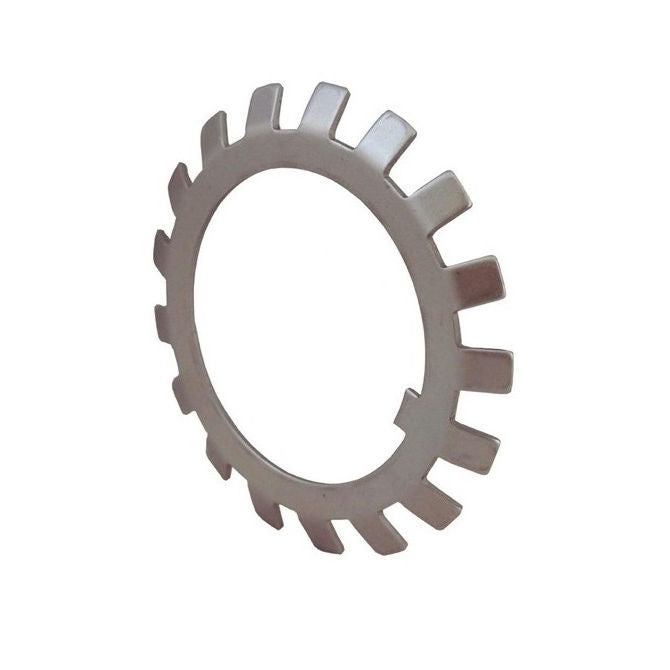

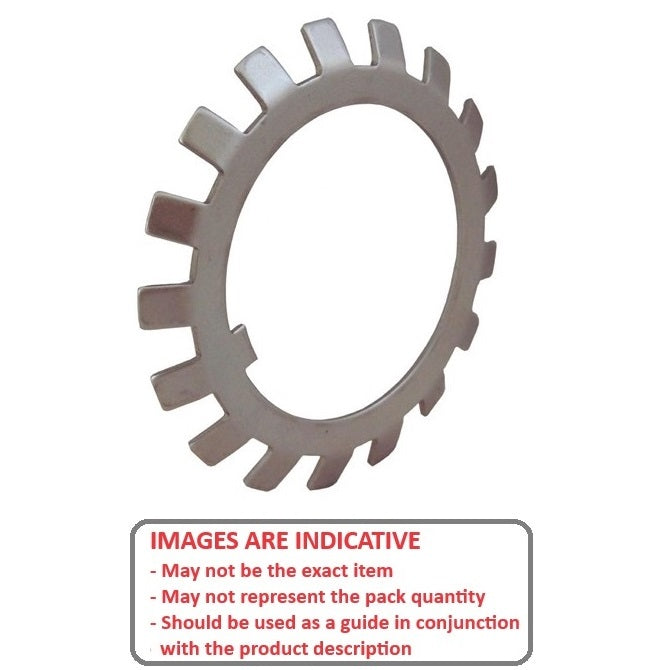

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data
- Approximate ID (D1)
:
180.00
mm
(Equiv. 7.087 in.) - Approx OD (D5)
242
mm
(Equiv. 9.528 in.) - Tabs 19 Nr.
- Inner Tab Width (E) 20.00 mm
- Outer Tab Width (S) 18.00 mm
- Inner Face (D4) 203.0 mm
- thickness (t) 2.5 mm
- Matching Locknut AN / KM36
- Inner Tab Type Straight ISO 2982
- Series MB / AW-X
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor MB-36
- MB36
