BTU0180-010-F-Z-HD - Datasheet
MBA
Category Information

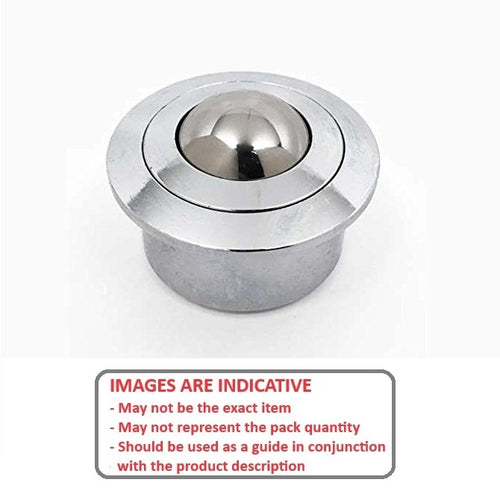

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc PlatedZinc Plated Heavy Duty Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 180 kg

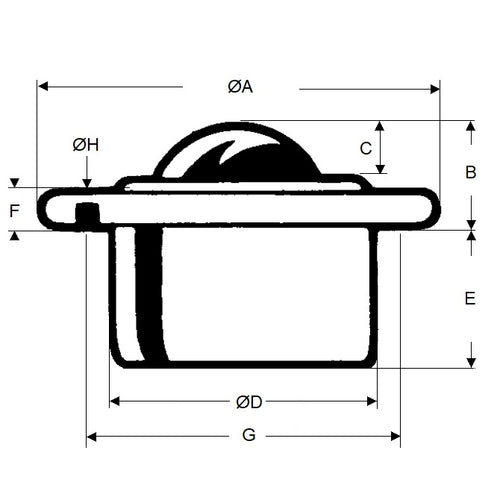

- Ball Height from Flange (B)
9.8
mm
(Equiv. 0.386 in.) - Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.) - Overall Height (L) 30.5 mm
- Ball Diameter 22.0 mm
- Body Height 20.7 mm
- Flange Diameter 45.0 mm
- Flange Thickness 6.0 mm
- Solid Steel Unit Type
- Material Chrome hardened and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- BTHD22A
- BTHD-22A
- SKF2213
- SKF-2213
