REF-180-L-CB-F - Datasheet
MBA
Category Information

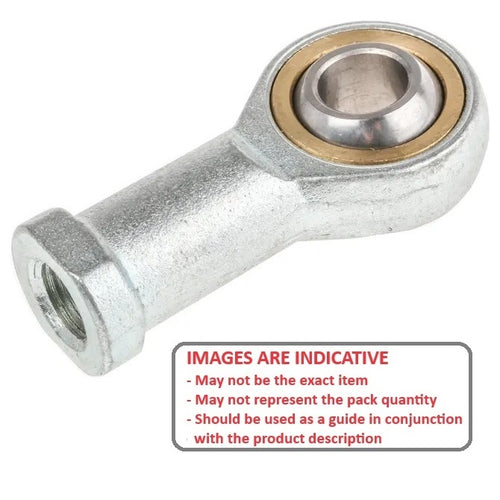

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

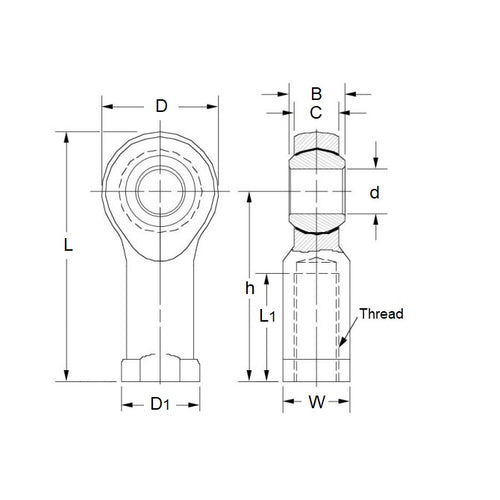

Product Data
- Eye Size : 18 mm
- Overall Length 92.00 mm
- Thread Size M18x1.5 Left
- Thread Length 36.00 mm
- Head Width 16.50 mm
- Eye Width 23.00 mm
- Head Diameter 42.00 mm
- Centre Height 71.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 27.00 / 31.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI® JAF18L
- KWK KF18L
- IKO PHS18L
- Nachi® PHS-18L
- NTN® SFI-18L
- SFI18L
