ECB-0159-0189-C - Datasheet
MBA
Category Information

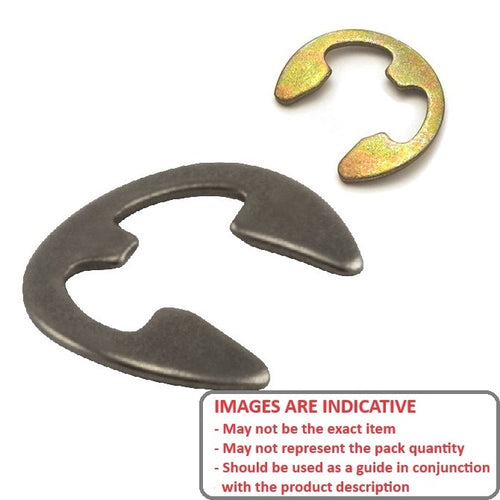

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data
- Minimum Rec. Shaft Dia (S)
:
18.90
mm
(Equiv. 0.744 in.) - Groove Dia. (Dg)
15.88
mm
+ 0.076 / - 0.000
(Equiv. 0.625 in.) - Clip Thickness (T)
1.27
mm
+/ - 0.051

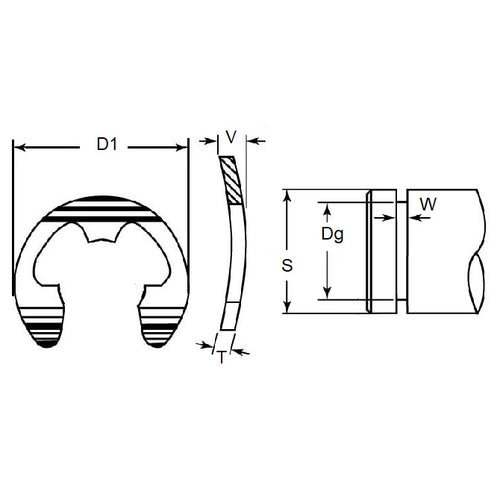

(Equiv. 0.05 in.) - Clip OD Loose (D1) 25.40 mm
- Groove Width (W) 1.45 mm
- Ring Width (X) 2.16 mm
- Force Required to Flatten 49.1 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N1501-X074
- N1501X074
