KSM184-OUK - Datasheet
MBA
Category Information

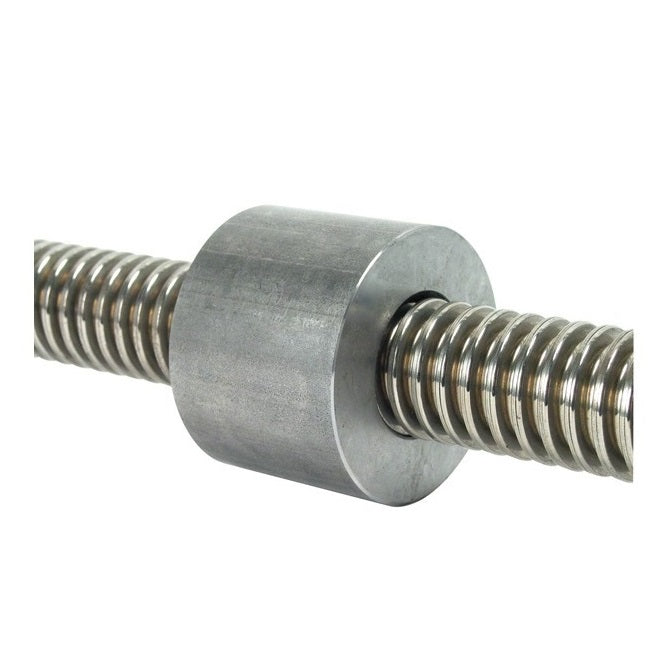

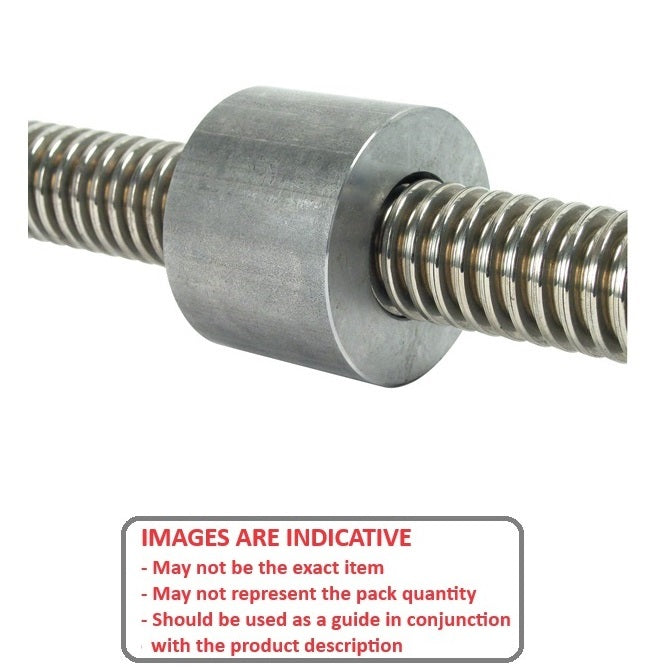

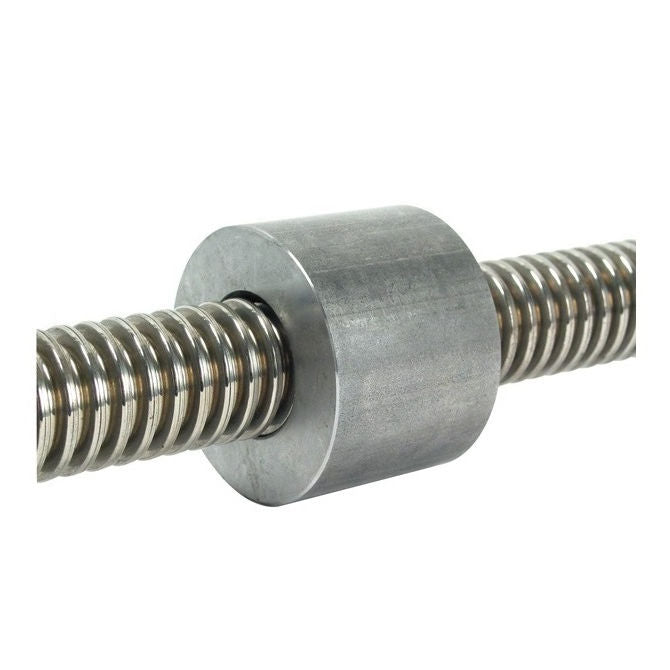

Leadscrew - Nuts - Metric - Round MetallicRound Metallic Metric Nuts Leadscrew. Trapezoidal thread design. Use with metric leadscrew thread listed in separate category.
- An expanded range may be available on special order. Please enquire.
- Material: KSM = Carbon Manganese Steel S300 Pb (11 SMn Pb37) / LRM = Bronze CuSn8P.
- Carbon Manganese steel can be welded but difficulties may arise with bubbling due to sulphur content.
- KSM: Manual control control only - low rotational speeds only - for clamping or locking functions - for receiving dead weights.
- LRM: Manual or powered control - low and medium rotational speeds - for working under load.
- For power transmission and continuous use always use bronze nuts not steel.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

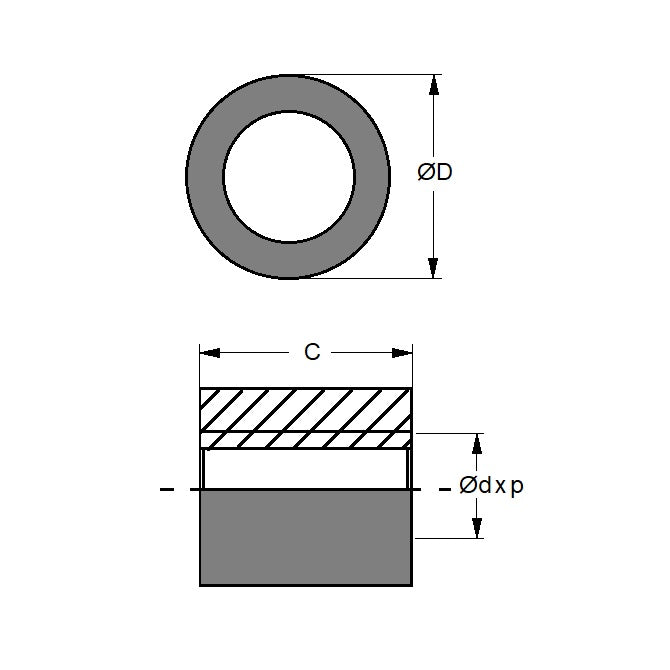

- Suitable Screw Diameter (d)
:
18.000
mm
(Equiv. 0.709 in.) - Lead / Pitch (P)
4
mm
(Equiv. 0.157 in.) - Direction Right Hand
- OD (D) 40.00
- Length (C) 27 +/-0.15
- Contact Surface Right Hand
- Starts 1
- Material Carbon Manganese Steel S300 Pb
Product Compliance and Data
Additional Resources
Cross References
- KSM184
