G019B-018-V24-064-048-B-P - Datasheet
MBA
Category Information

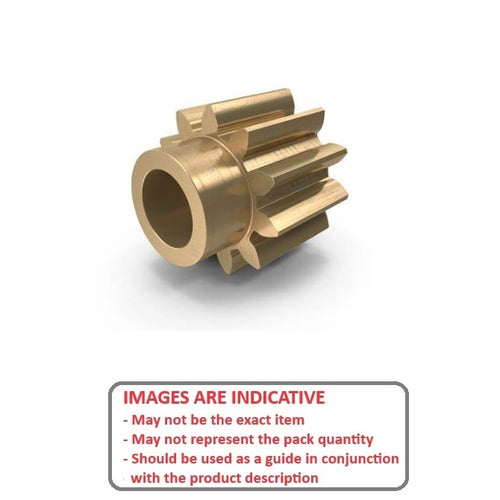

Gears - Spur - Hubbed - 24DP - 14.5 Degree - BrassBrass 14.5 Degree 24DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 1.05833 (1/24 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 24 teeth
- 24 Diametrical Pitch. Approx 3.33mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 18
- Pitch Circle Diameter (PD)
19.05
mm
(Equiv. 0.75 in.) - Bore (d)
4.762
mm
(Equiv. 0.187 in.) - Outside Diameter (OD) 21.158 mm
- Face Width (FW) 6.35 mm
- Type Hubbed
- Hub Diameter (D1) 12.70 mm
- Hub Projection (HL) 6.35 mm
- Locking Method None
- Quality Commercial
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- G019B18V24064048BP
