SLV-K-120-180-200 - Datasheet
MBA
Category Information

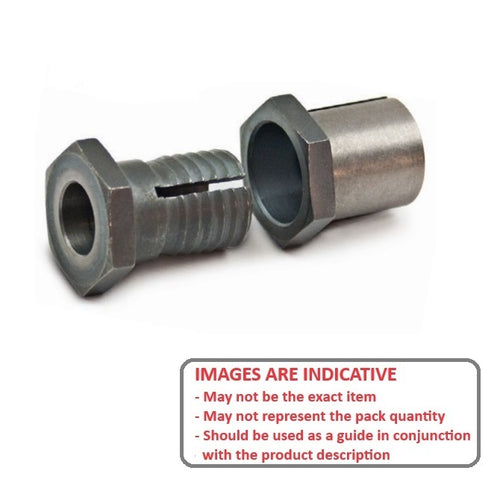

Shaftloc Sleeves - Single EndedSingle Ended Shaftloc Sleeves. Simple effective way to lock components onto shafts.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- 416 Stainless Steel
- Simple two part screw together system locks parts securely to shaft.
- Asymetric thread geometry produces a large radial clamping force when the nut is tightened
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

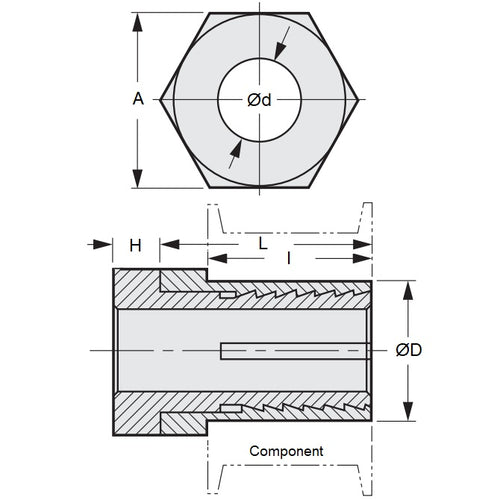

- Component Bore (+0.025) (D)
:
18.000
mm
(Equiv. 0.709 in.) - Shaftloc Bore (d)
12.000
mm
(Equiv. 0.472 in.) - Max. Length of Component (l)
20.000
mm
(Equiv. 0.787 in.) - Max Torque Cap. 16.5 N.m
- Length of outer sleeve (L) 25.5 mm
- Head Width Inner Sleeve (H) 5.60 mm
- Hex Size (H) 21.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- A 7Z39M1218
- A7Z39M1218
