BP0120-0180-0150-DP - Datasheet
MBA
Category Information

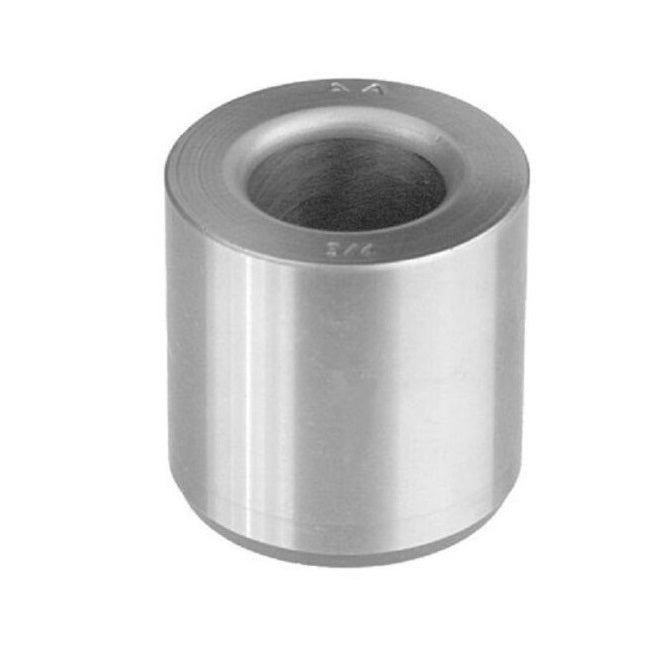

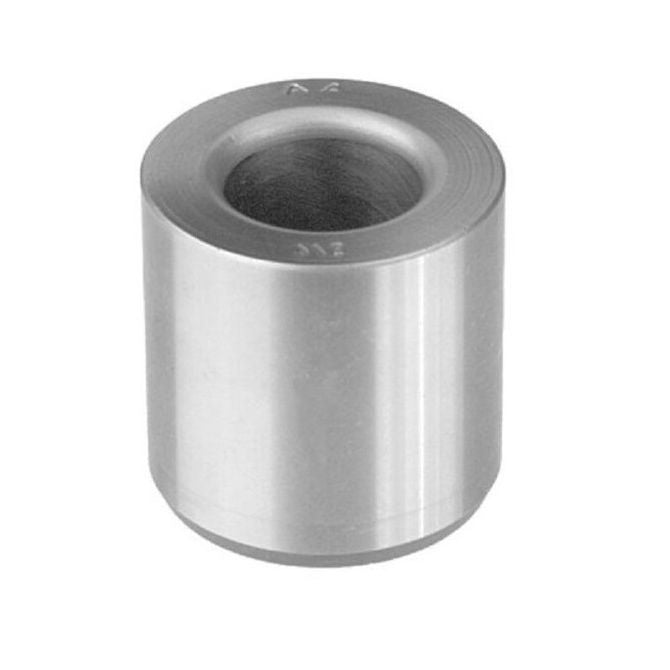

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
18
mm
(Equiv. 0.709 in.) - Drill Size
12.000
mm
(Equiv. 0.472 in.) - Length
15.000
mm
(Equiv. 0.591 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-JBAM12-15
- CJBAM1215
