PR-0170-050-ZZ-ES-55 - Datasheet

MBA

Category Information

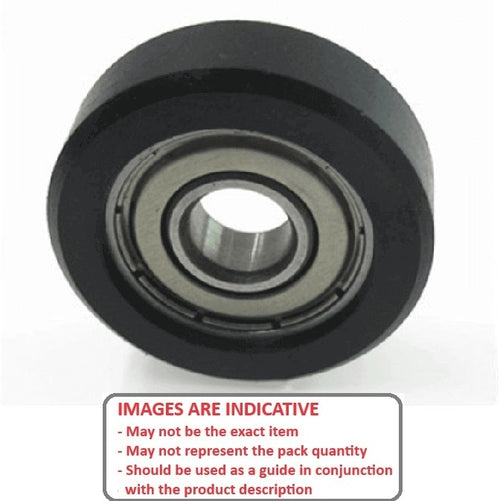

Rollers - Pressure Roller with Bearing - Urethane OD

Urethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.

  • For applications including paper and card dispensing and rolling (eg ATM Machines).

Product Data

  • OD (D) : 17.000 mm +/- 0.1
    (Equiv. 0.669 in.)
  • ID (d) 5.000 mm
    (Equiv. 0.197 in.)
  • Width (B) 5.000 mm
    (Equiv. 0.197 in.)
  • Roller Width (BR) 5.000 mm
  • Bearing Outside Diameter (D1) 13.000 mm
  • Roller Material 55 Duro (JIS-A) Polyester Based Urethane - Black
  • Closures ZZ
  • Bearing Type Pressure Roller
  • Material Stainless Steel AISI 440C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Origin SS5-17RM-ZZ-HS55
  • SS5-17RM-Z-HS55
  • SS517RMZHS55
  • SS517RMZZHS55
View full details

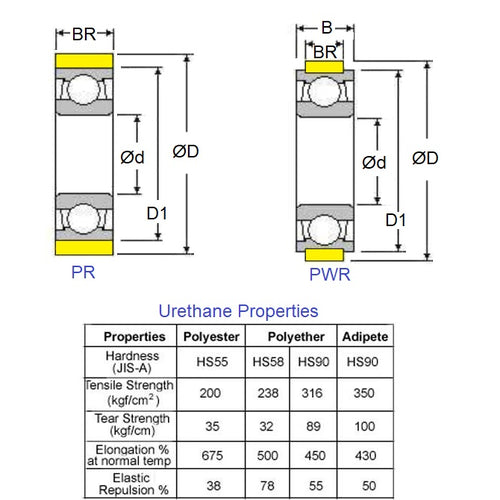

PR-0170-050-ZZ-ES-55DiagramPR-0170-050-ZZ-ES-55Image
