S316-5203 - Datasheet

KMS

Category Information

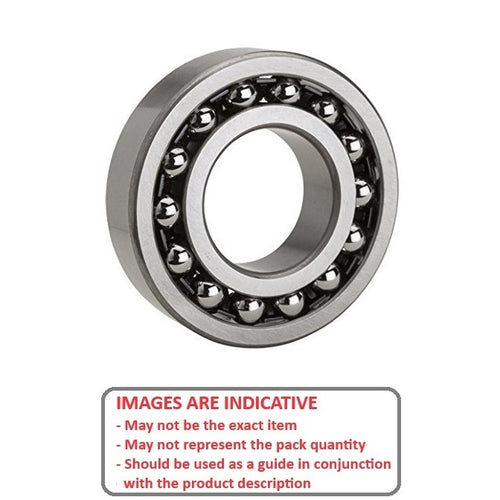

Bearings - Double Row Ball - Semi Precision - 316 Stainless Steel

316 Stainless Steel Semi Precision Double Row Ball Bearings. Marine, food and medical grade Stainless Steel - Non Hardenable. Open, easier to lubricate. Water lubrication is ok.

  • Double row ball bearings are generally wider than a single row bearing of equivalent ID and OD.
  • The double row ball bearing accommodates much higher loads than a single row bearing.
  • An expanded range may be available on special order. Please enquire.
  • Tolerances differ from standard bearing types. Due to the tolerance range it is recommended that each actual bearing is measured to calculate fits.
  • Polymer cages, grade 200 type 316 stainless balls, AISI 316 stainless races.
  • Rings machined from solid rod stock producing true running concentric bearings.
  • Low load, low speed applications requiring maximum corrosion resistance.

Product Data

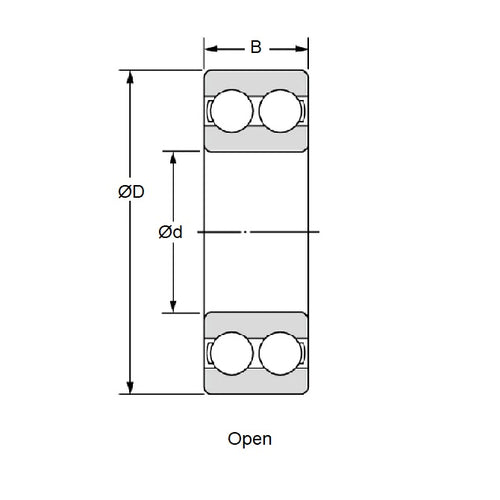

  • ID (d) : 17.000 mm + 0.076 / - 0.000
    (Equiv. 0.669 in.)
  • OD (D) 40.000 mm + 0.000 / - 0.102
    (Equiv. 1.575 in.)
  • Width (B) 17.460 mm + 0.127 / - 0.000
    (Equiv. 0.687 in.)
  • Precision Grade Semi Precision
  • Closure Type Open
  • Bearing Type Double Row Radial
  • Lubrication Unlubricated
  • Material Stainless Steel 316 (Similar to A4, 18-10)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KMS SS5203-6
  • SS52036
