E30203J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

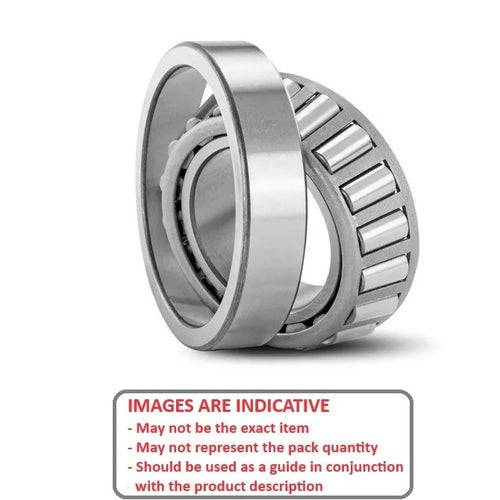

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

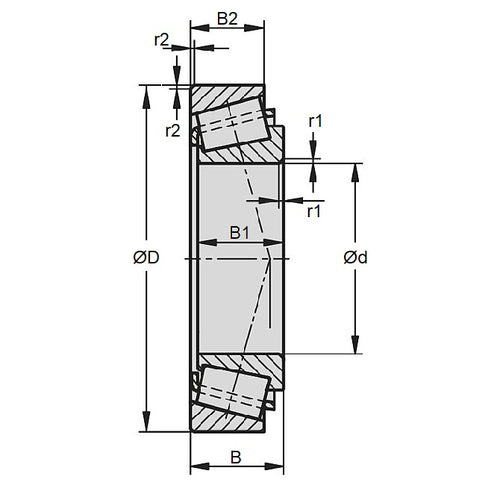

Product Data

  • Inside Diameter : 17 mm
    (Equiv. 0.669 in.)
  • Outside Diameter 40 mm
    (Equiv. 1.575 in.)
  • Assembled Width 13.250 mm
    (Equiv. 0.522 in.)
  • Cone Width 12 mm
  • Cup Width 11 mm
  • Radius Cone (min) 1 mm
  • Radius Cup (min) 1 mm
  • Basic Dynamic Load 20400 N
  • Basic Static Load 20200 N
  • Limiting Speed for Grease 10000
  • Limiting Speed for Oil 13000
  • Material Chrome Steel
Country of Origin: JP
