MSF-120M-S3 - Datasheet

MBA

Category Information

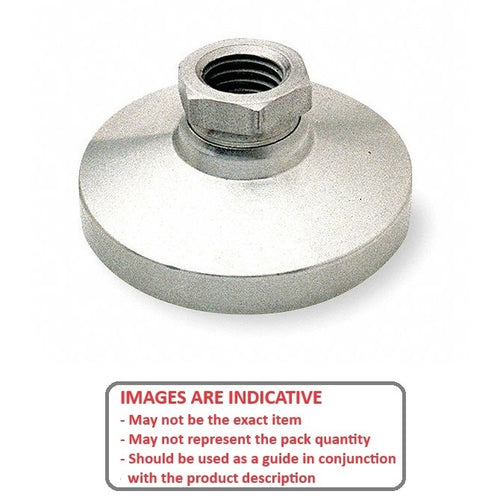

Mounts - Levelling Socket - Swivel - 303 Stainless - Standard

Standard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.

Product Data

Thread Size (A) : M12 (12x1.75mm)
Base Diameter (D) 48.0 mm
Foot Height (C) 29.0 mm
Min. Thread Depth 11.2 mm
Base Height (E) 6.00 mm
Load Rating 1750 Kg
Hex Flats (B) 19.00 mm
Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® HVLM-20SS
HVLM20SS
MSF1750M12S3
