MSF-100M-CNP - Datasheet
MBA
Category Information

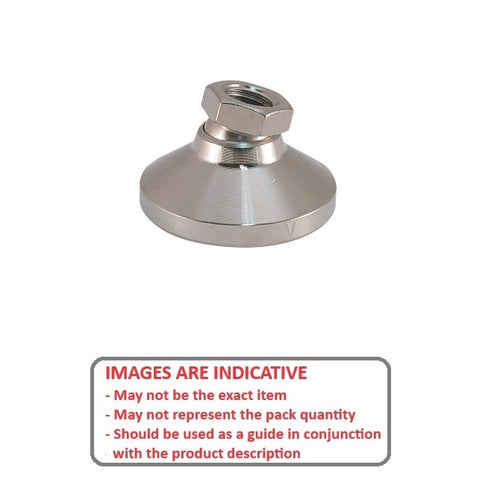

Mounts - Levelling Socket - Swivel - Nickel Standard - PlatedPlated Nickel Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
32.0
mm
(Equiv. 1.26 in.) - Foot Height (C)
22.0
mm
(Equiv. 0.866 in.) - Min. Thread Depth 10.0 mm
- Base Height (E) 5.00 mm
- Load Rating 1740 Kg
- Finish Nickel Plated
- Hex Flats (B) 16.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF1740M10NP
- MLP-365
- MLP365
