MSF-120M-CNPRP - Datasheet
MBA
Category Information

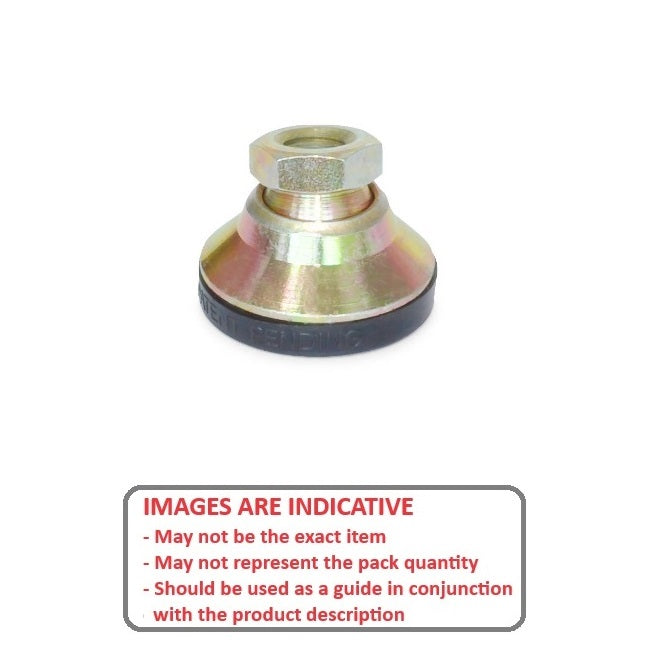

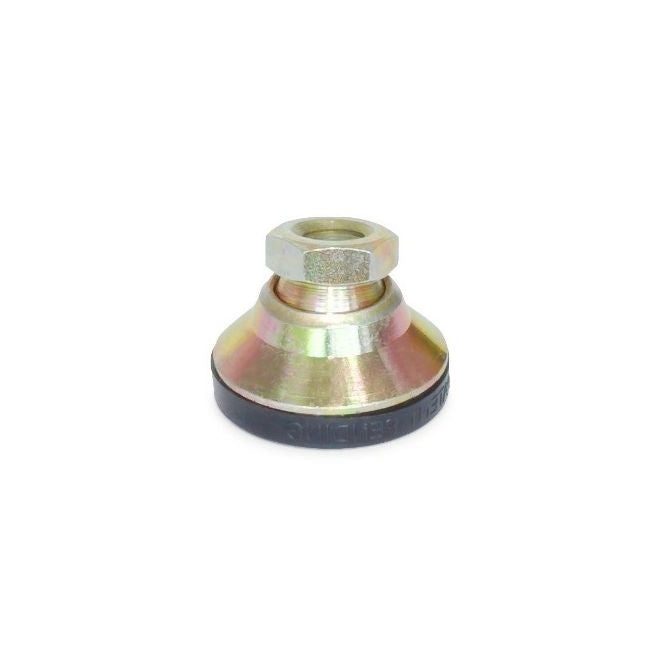

Mounts - Levelling Socket - Swivel - Nickel Plated - Rubber PaddedRubber Padded Nickel Plated Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M12 (12x1.75mm)
- Base Diameter (D)
48.0
mm
(Equiv. 1.89 in.) - Foot Height (C)
32.0
mm
(Equiv. 1.26 in.) - Min. Thread Depth 11.0 mm
- Base Height (E) 10.00 mm
- Load Rating 1700 Kg
- Finish Nickel Plated
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 20.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF1700M12NPR
- MLP-405
- MLP405
