MSF-100M-S3 - Datasheet

MBA

Category Information

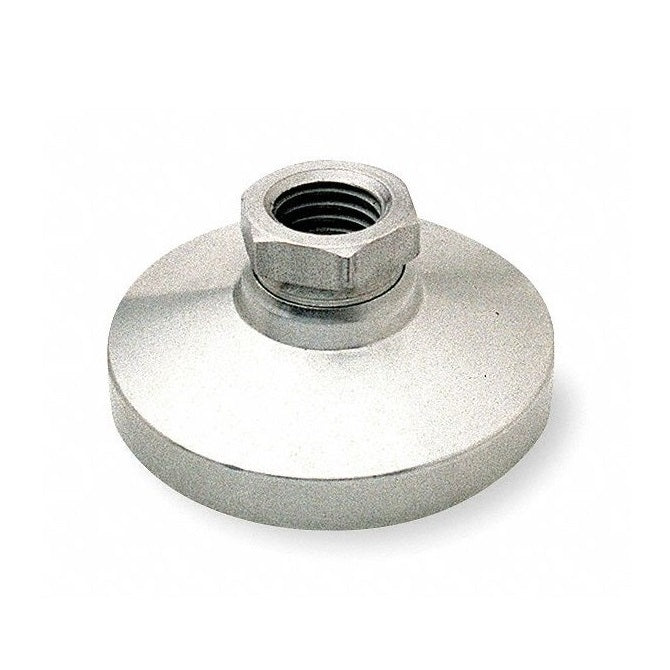

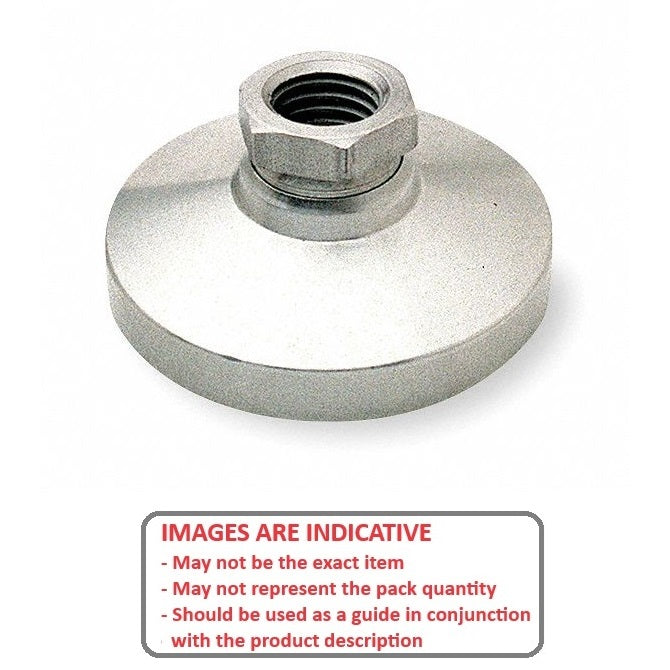

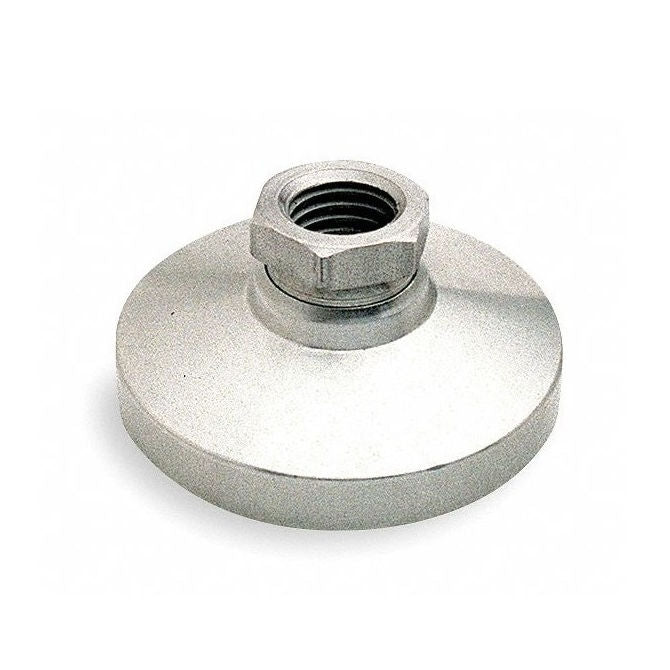

Mounts - Levelling Socket - Swivel - 303 Stainless - Standard

Standard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15^o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

An expanded range may be available on special order. Please enquire.

Product Data

Thread Size (A) : M10 (10x1.5mm)
Base Diameter (D) 32.0 mm
Foot Height (C) 22.0 mm
Min. Thread Depth 9.7 mm
Base Height (E) 5.00 mm
Load Rating 1700 Kg
Hex Flats (B) 17.00 mm
Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® HVLM-15SS
HVLM15SS
MSF1700M10S3
