MSF-100M-CGC - Datasheet
MBA
Category Information

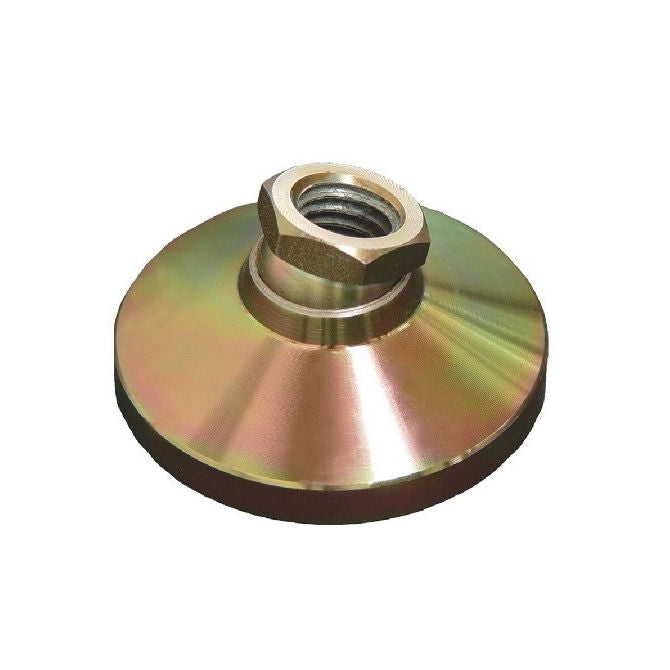

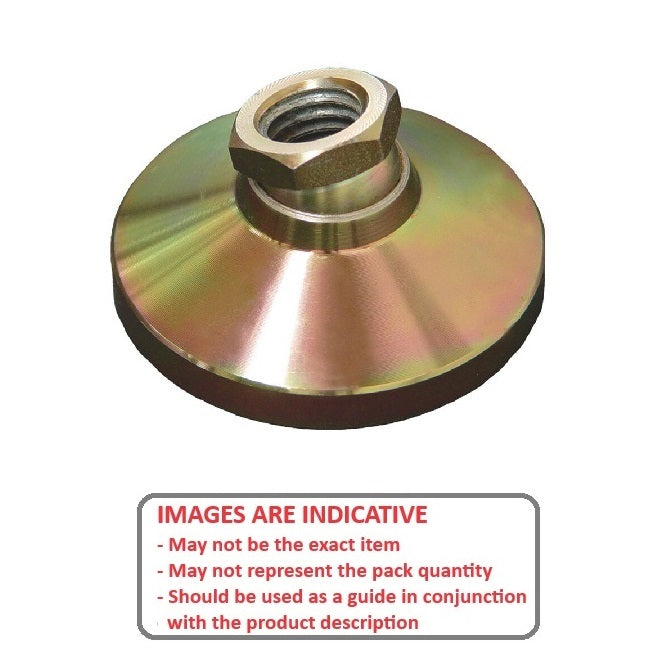

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M10 (10x1.5mm)
- Base Diameter (D)
32.0
mm
(Equiv. 1.26 in.) - Foot Height (C)
22.0
mm
(Equiv. 0.866 in.) - Min. Thread Depth 9.7 mm
- Base Height (E) 5.00 mm
- Load Rating 1700 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 17.00 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MLF1700M10G
- HVLM15
- HVLM-15
