MSM-095F-051-CGC - Datasheet
MBA
Category Information

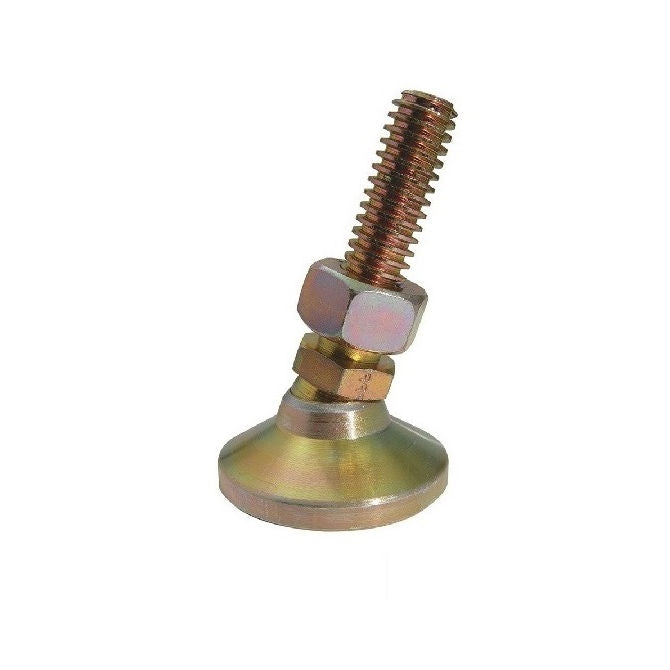

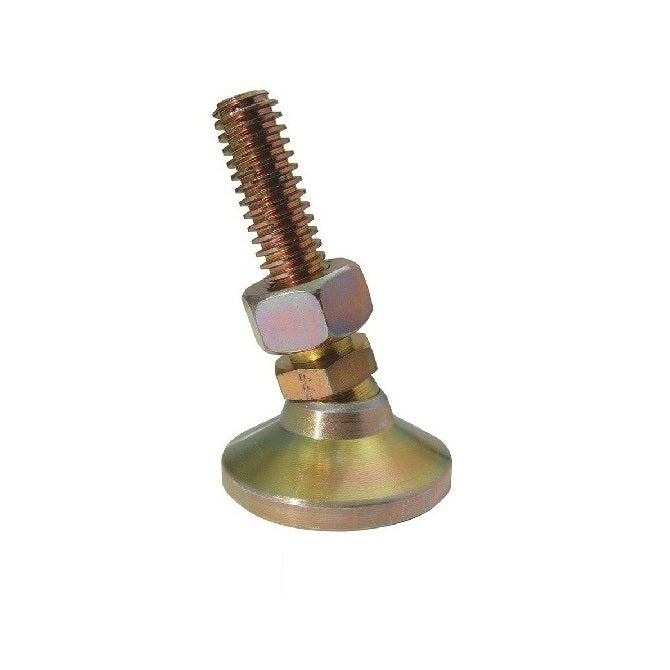

Mounts - Levelling Studded - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/8-24 UNF (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
22.2
mm
(Equiv. 0.874 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 4.76 mm
- Overall Height 73.0 mm
- Load Rating 1700 Kg
- Finish Gold Chromate
- Hex Flats (B) 15.875 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM1700095FG
- TL6
- TL-6
