MSM-095C-051-S3 - Datasheet
MBA
Category Information

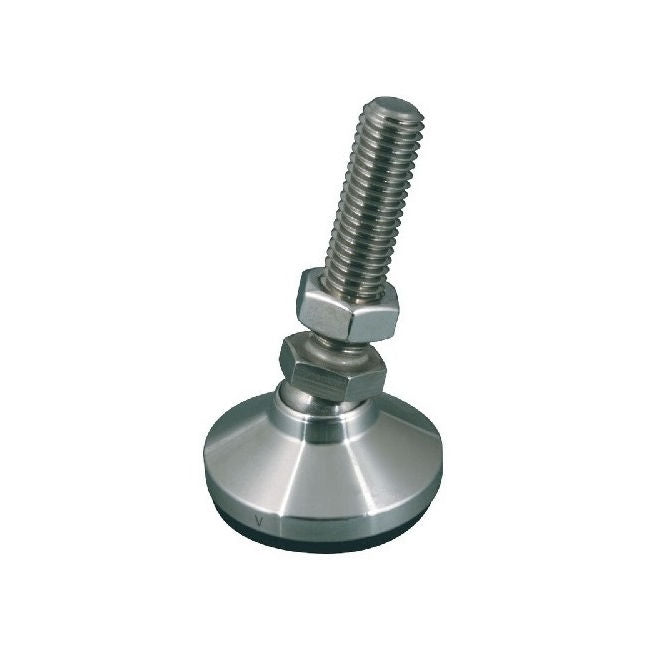

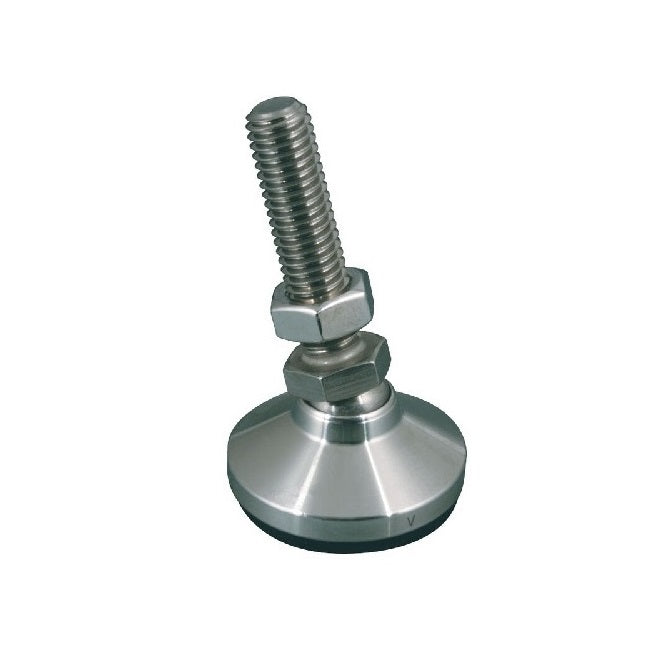

Mounts - Levelling Studded - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.

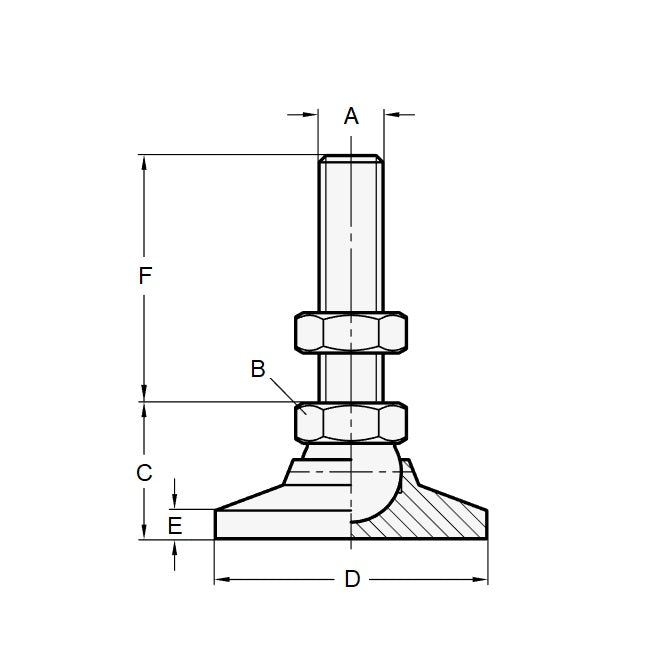

Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D)
31.8
mm
(Equiv. 1.252 in.) - Foot Height (C)
22.2
mm
(Equiv. 0.874 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 4.76 mm
- Overall Height 73.0 mm
- Load Rating 1700 Kg
- Hex Flats (B) 15.875 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 6111K61
- MSM1700095CS3
- TL-1SS
- TL1SS
