MSF-127F-CGC - Datasheet
MBA
Category Information

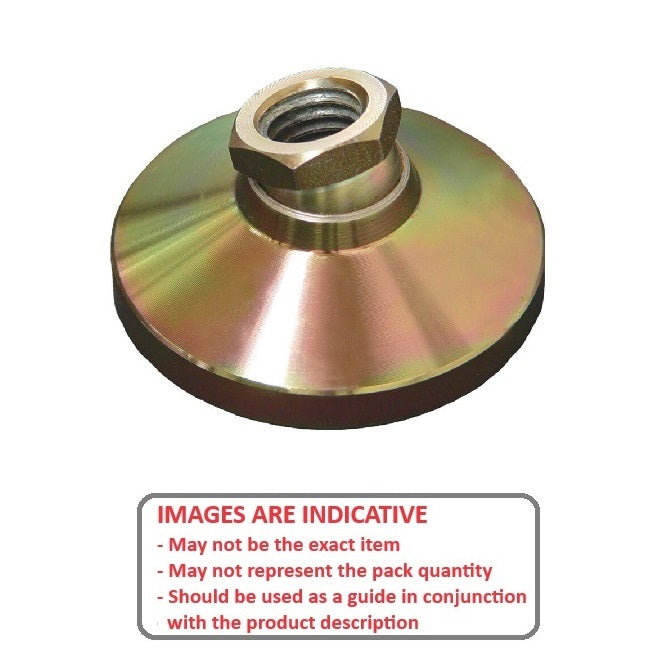

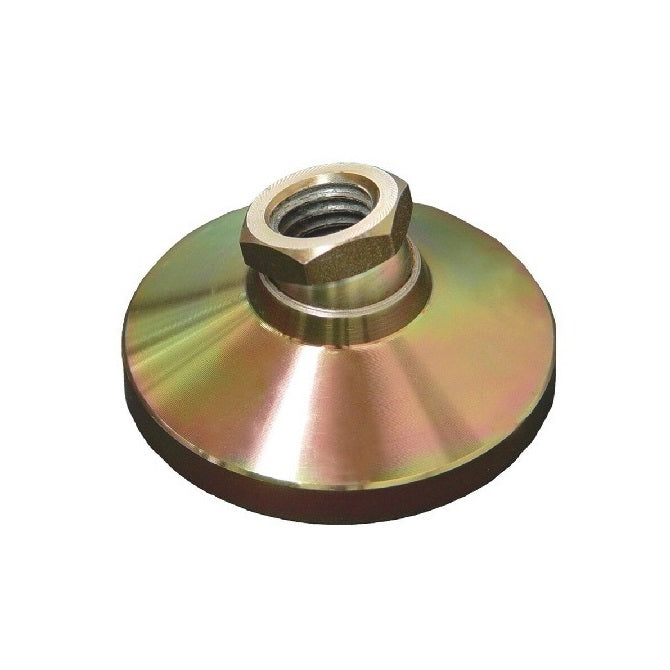

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-20 UNF (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 1700 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 19.05 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MSF1700127FG
- L8
- L-8
