MSM-127C-051-S3RP - Datasheet
MBA
Category Information

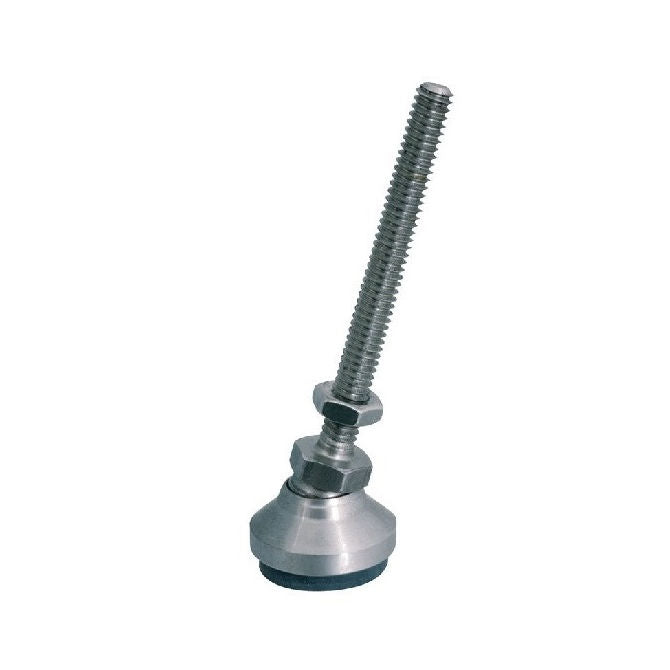

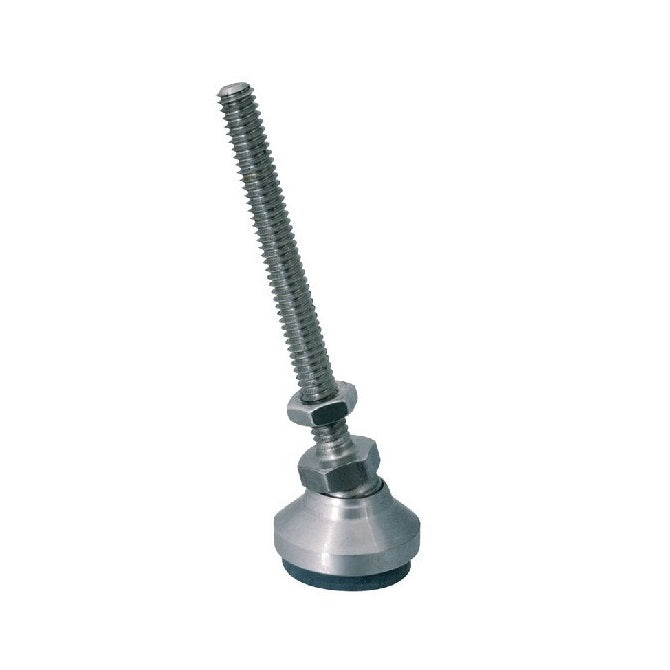

Mounts - Levelling Studded - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

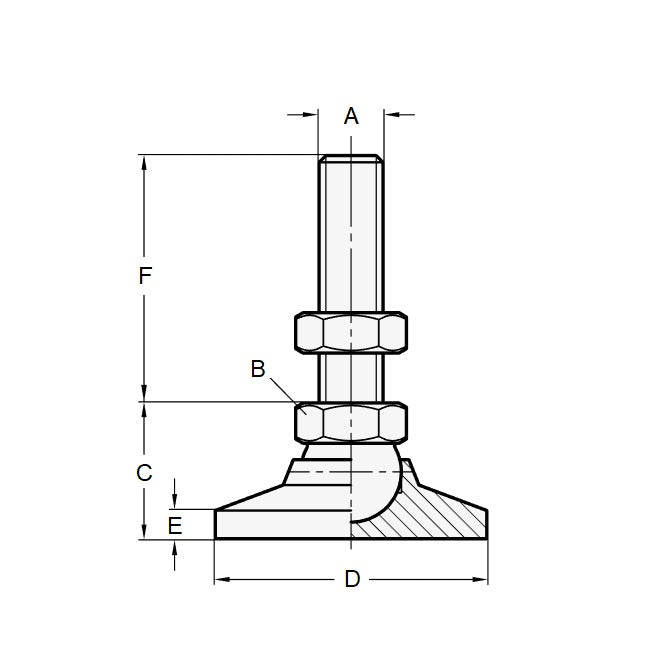

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 9.53 mm
- Overall Height 82.6 mm
- Load Rating 1700 Kg
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 19.050 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSM1700127CS3R
- TLE2SS
- TLE-2SS
