WRI-1700-LS - Datasheet
MBA
Category Information

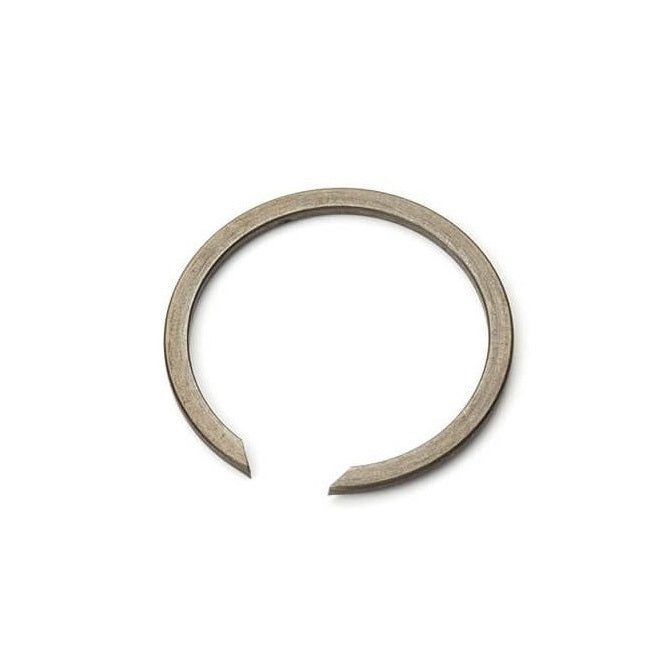

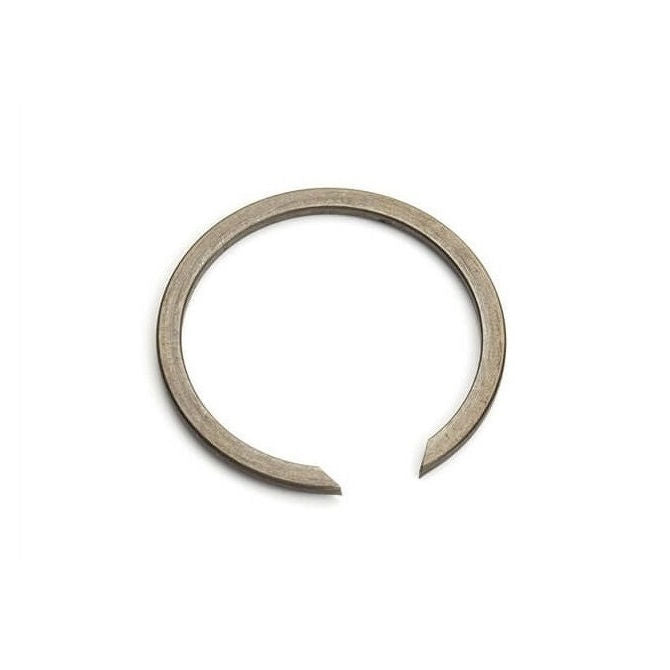

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
170.00
mm
(Equiv. 6.693 in.) - Clip Thickness (T)
2.50
mm
+ 0 / - 0.10
(Equiv. 0.098 in.) - Groove Dia. (Dg)
172.6
mm
+ 0.25 / - 0.00
(Equiv. 6.795 in.) - Approx. Loose Circlip OD (Dr) 174.30 mm
- Section (Rd) 4.00 mm + 0 / - 0.10
- Groove Width (W) 2.70 mm
- Approx. Loose Clip ID 166.3
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
