TR-1700-1720-390-S3 - Datasheet
MBA
Category Information

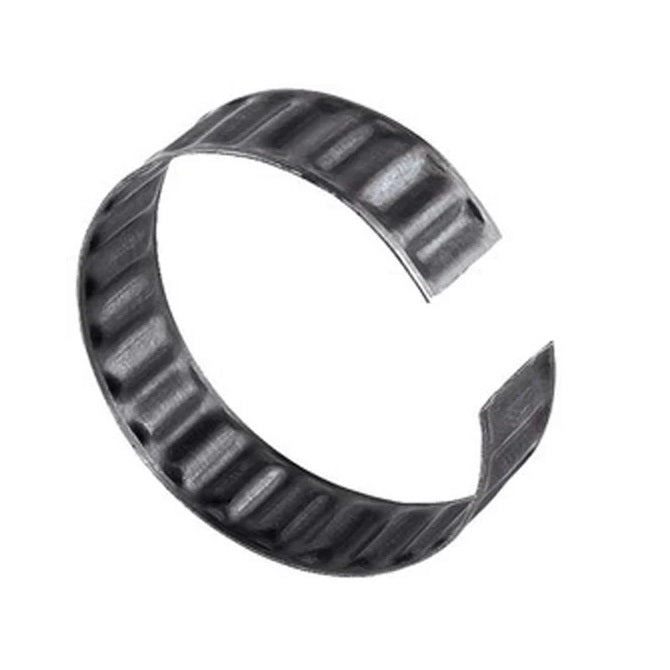

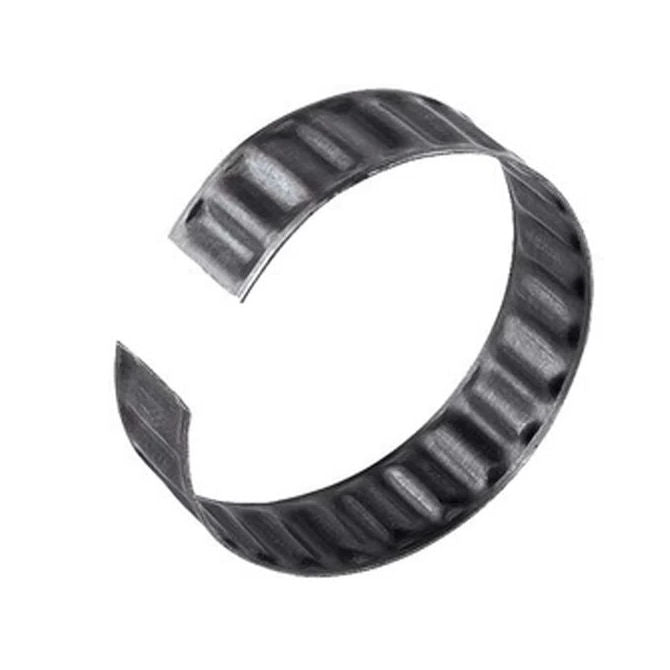

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

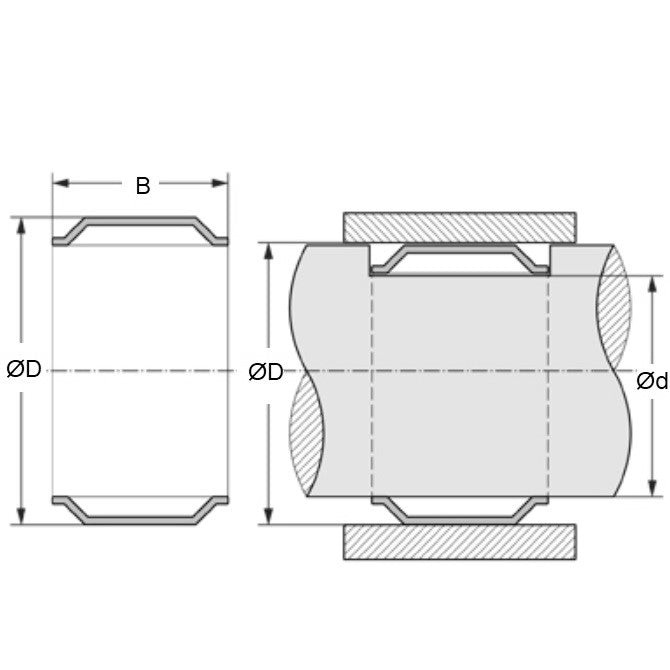

- Inner Part OD (d)
:
170.00
mm
(Equiv. 6.693 in.) - Housing ID (D)
171.88 to 171.95
mm
(Equiv. 6.767 in.) - Ring Width (B)
39.00
mm
(Equiv. 1.535 in.) - Style For bearing OD
- Max. Radial Load 1949 N
- To Suit OD of Bearing 6316
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- TR170017203903
