Miniature Bearings Australia
MPS-0179S-AL57 - Datasheet
MBA
Category Information

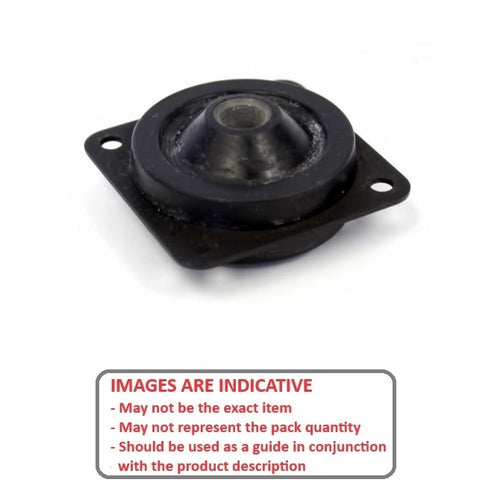

Mounts - Plate StylePlate Style Mounts. Vibration dampening
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Maximum Load Rating : 17.86 kg

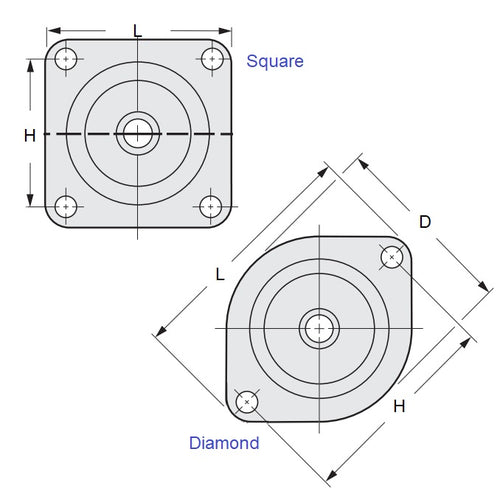

- Overall Length (L)
57.2 x 57.2
mm
(Equiv. 2.252 in.) - Overall Height (D or L)
25.781
mm
(Equiv. 1.015 in.) - Hole Centres (H) 44.45 mm
- Base Configuration Square
- Centre Hole 10.13 mm
- Material Rubber / Aluminium
Product Compliance and Data
Additional Resources
Cross References
- A10Z40-1220BK1
- A10Z401220BK1
