UFL003N - Datasheet
MBA
Category Information

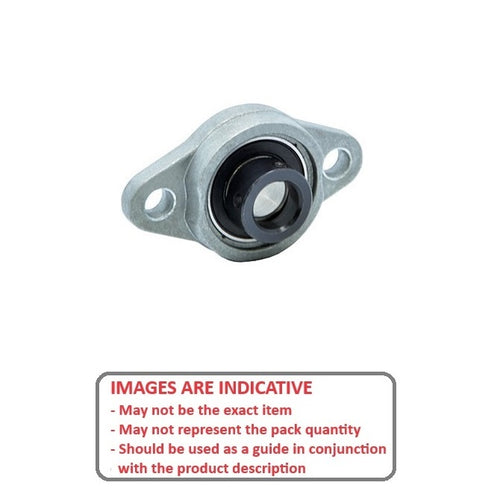

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - AluminiumAluminium Rigid Flanged 2 Bolt Housing and Bearing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
Product Data

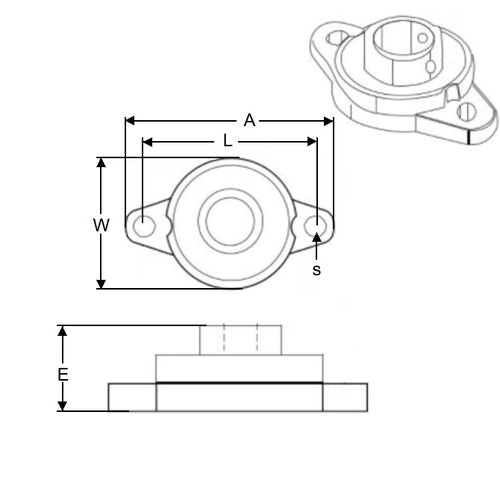

- Nominal Shaft Size : 17.0 mm
- Width (W) 46.0 mm
- Overall Length (A) 71.0 mm
- Overall Height (E) 22.5 mm
- Bolt Hole Size (s) 7.0 mm
- Bolt Hole Centres (L) 56.0 mm
- Material Aluminium
