CCE-01746-B - Datasheet
MBA
Category Information

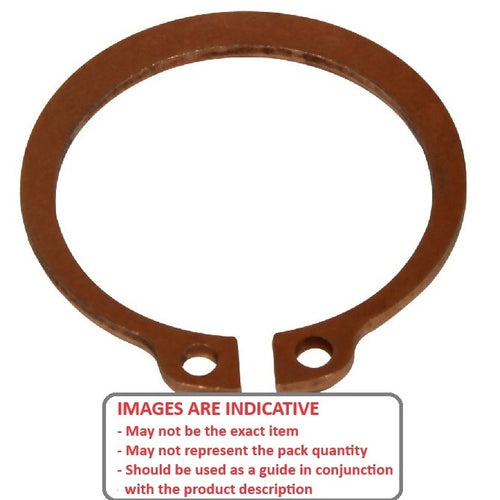

Retaining Rings - External - Circlips - Standard - Beryllium CopperBeryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
Product Data
- Shaft Diameter (Ds)
:
17.46
mm
(Equiv. 0.687 in.) - Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.) - Groove Dia. (Dg)
16.41
mm
+/- 0.051
(Equiv. 0.646 in.) - Approx. Loose Circlip ID (A) 16.10 mm
- Groove Width (W) 1.20 mm
- Standard MIL-16624
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-068-BC
- SH068BC
- N14000068BC
- N1400-0068BC
