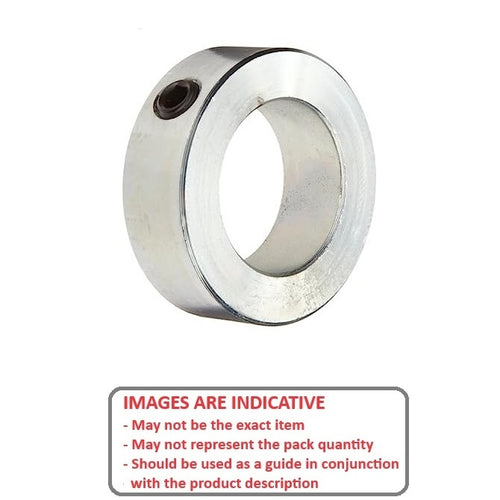

COL-01746-032-14-CZ - Datasheet
MBA
Category Information
Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
17.463
mm
+ 0.051 / - 0.000
(Equiv. 0.688 in.) - Outside Diameter (D) 31.80 mm
- Overall Width (S) 14.3 mm
- Screw Size 5/16-18 x 1/4
- Material Steel or Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K24
- Huyett® SC-0687-ZC
- NoCor® SC-0687-ZC
- SC0687ZC
- A7C2-14022
- A7C214022
