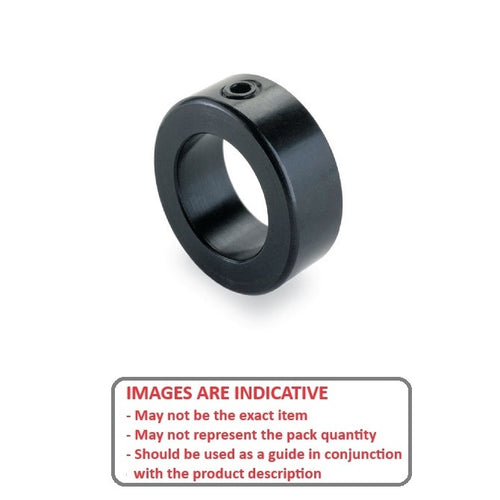

COL-01746-032-14-CBO - Datasheet
MBA
Category Information
Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
17.463
mm
(Equiv. 0.688 in.) - Outside Diameter (D)
31.75
mm
(Equiv. 1.25 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- 9414T14
- NoCor SC-0687-BO
- SC0687BO
