NAST17 - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

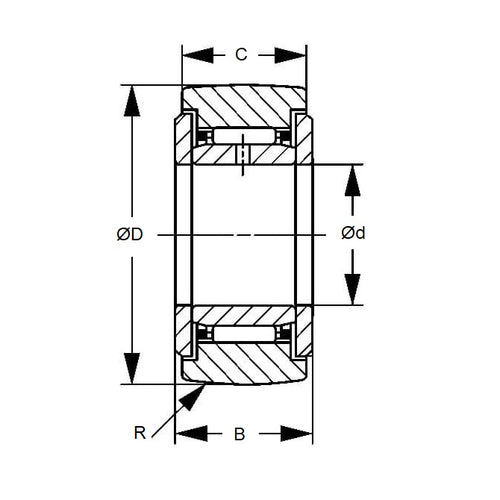

- ID (d)
:
17.00
mm
(Equiv. 0.669 in.) - OD (D)
40.00
mm
(Equiv. 1.575 in.) - Width (C)
15.80
mm
(Equiv. 0.622 in.) - Inner Ring Width (B) 16.00 mm
- OD Type Cylindrical
- Dynamic Load Rating 1790.00 kgf
- Static Load Rating 2130.00 kgf
- Closures None
- Material Steel
