PLIT-160-240-200-96-KPUN-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut

With Nut Stainless and Plastic No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M24 Fine (24x2mm)
    • Overall Length (A) 96.0 mm
      (Equiv. 3.78 in.)
    • Initial End Force 9.1 N
    • Final End Force 20.9 N
    • Tip Diameter (C) 16.0 mm
    • Tip Length (D) 16.0 mm
    • Hex Height (F) 30.0 mm
    • Knob Diameter (J) 40.0 mm
    • Nut Size (L) 36.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-653
      • KBP653
      View full details

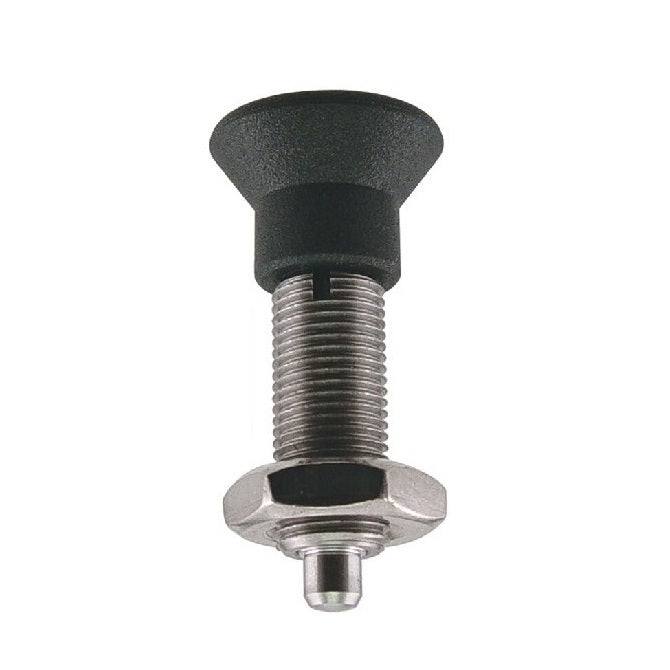

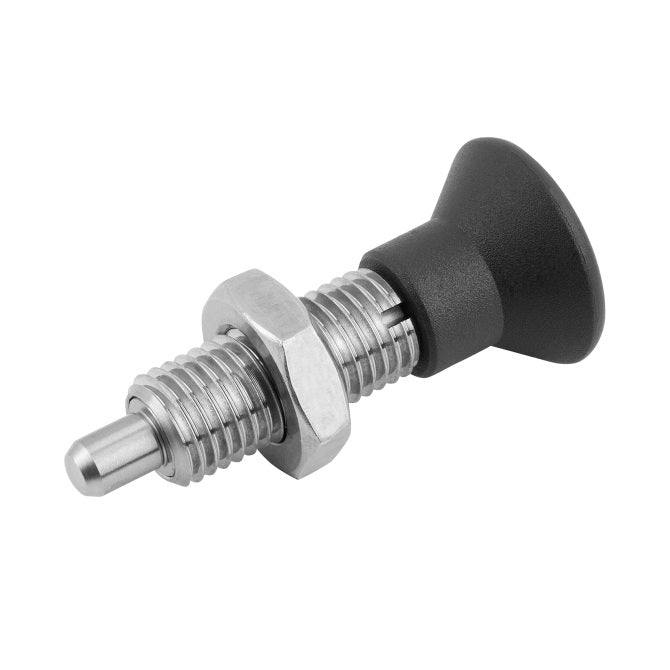

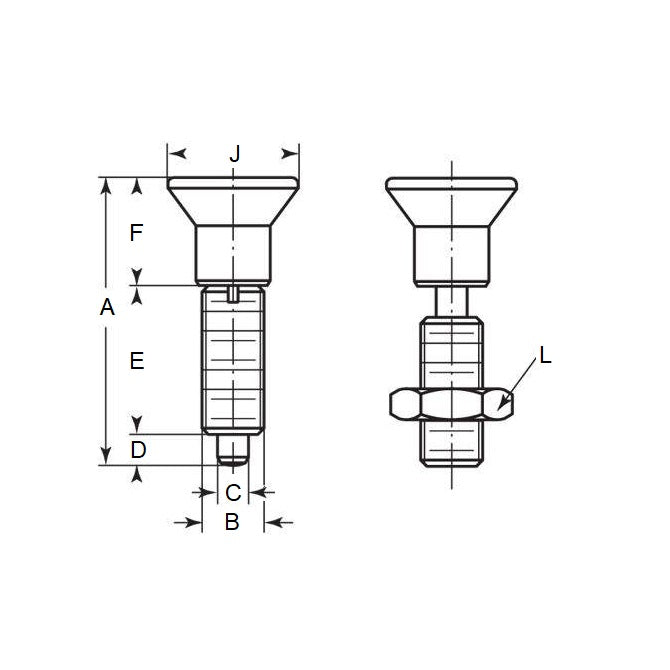

      PLIT-160-240-200-96-KPUN-S3DiagramPLIT-160-240-200-96-KPUN-S3Image
