PLIT-160-240-200-96-KPUN-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Steel - With Nut

With Nut Steel No Collar Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M24 Fine (24x2mm)
    • Overall Length (A) 96.0 mm
      (Equiv. 3.78 in.)
    • Initial End Force 9.1 N
    • Final End Force 20.9 N
    • Tip Diameter (C) 16.0 mm
    • Tip Length (D) 16.0 mm
    • Hex Height (F) 30.0 mm
    • Knob Diameter (J) 40.0 mm
    • Hex Size (L) 36.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-646
      • KBP646
      View full details

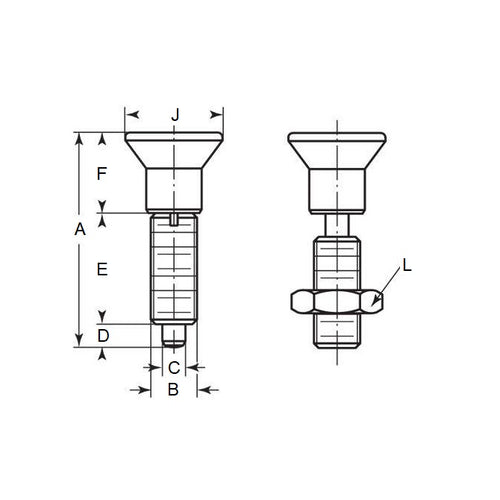

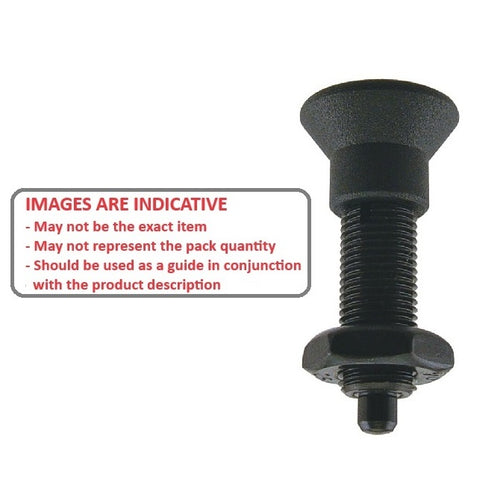

      PLIT-160-240-200-96-KPUN-CDiagramPLIT-160-240-200-96-KPUN-CImage
