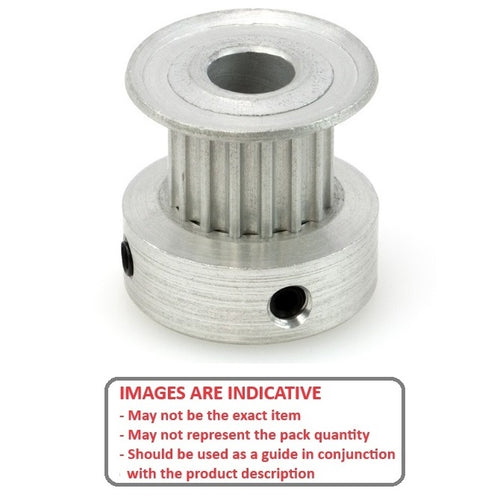

P-020G-016-060FH-AL-G-048 - Datasheet

MBA

Category Information

Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Through Bore

Through Bore 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • Set Screw and EZI-LOK Hubs

Product Data

  • Number of Teeth : 16
  • Max Belt Width 6.00 mm
    (Equiv. 0.236 in.)
  • Bore (d) 4.763 mm
    (Equiv. 0.188 in.)
  • Bore Type Finished
  • Locking Type Set Screw
  • Type 1
  • Pitch Dia. (PD) 10.18 mm
  • Flange Diameter (FD) 14.7 mm
  • Overall Length 14.3 mm
  • Hub Diameter (HD) 14.7
  • Material Aluminium
Country of Origin: IN

Product Compliance and Data

Additional Resources

Cross References

  • Gates 16-2P06-6CA2
  • 3764N104
  • 162P066CA2
  • A6A51016DF0606
  • A6A51-016DF0606
