2R-0160-0280-0300-KPU - Datasheet
ExaktKey
Category Information

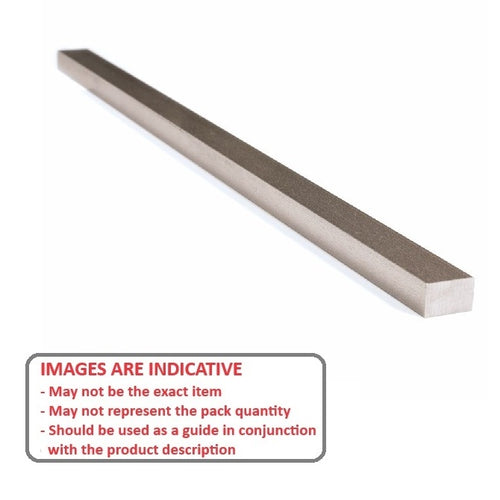

Keysteel Lengths - Rectangular - Carbon SteelCarbon Steel Rectangular Keysteel Lengths. Plain carbon steel key steel. Rectangular steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
16.000
mm
+ 0 / - 0.051
(Equiv. 0.63 in.) - Height (s2)
28.000
mm
+ 0 / - 0.076
(Equiv. 1.102 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Finish Plain
- Tolerance Type Standard Undersized
- Red End Colour Code
- Material Carbon Steel 1045
Product Compliance and Data
Additional Resources
Cross References
- NoCor 302816-305
- 302816305
