Miniature Bearings Australia
COL-01600-028-12-CBO - Datasheet
MBA
Category Information

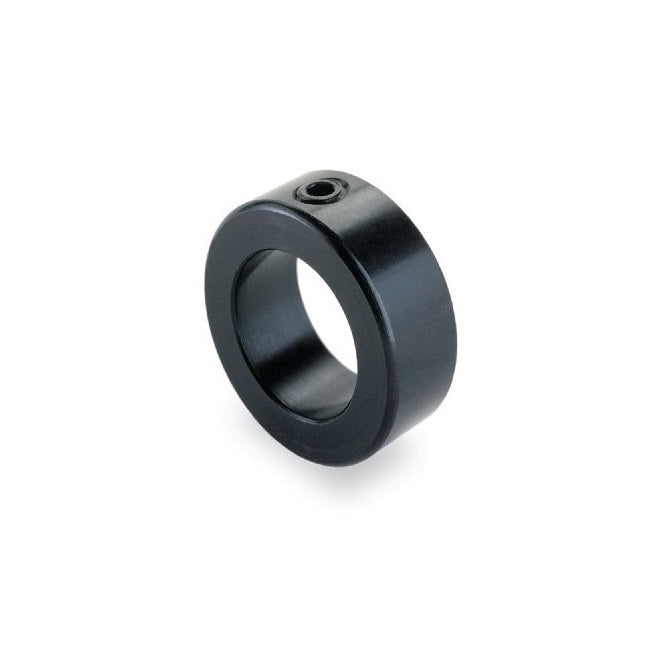

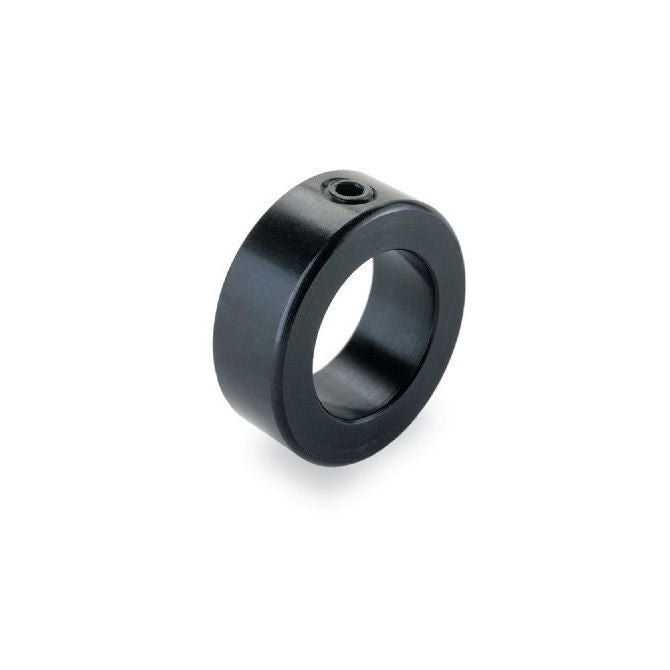

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
16.000
mm
(Equiv. 0.63 in.) - Outside Diameter (D)
28.00
mm
(Equiv. 1.102 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SCM-016-BO
- SCM016BO
