Miniature Bearings Australia
W0160-LI-027-013-CZ - Datasheet
MBA
Category Information

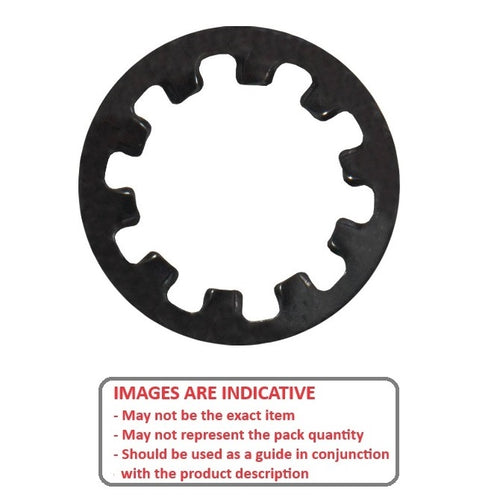

Washers - Lock - Internal Tooth - Spring SteelSpring Steel Internal Tooth Lock Washers. Spring steel, internal toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- These are not the same as push on retaining rings. This product is not designed to grip a shaft. Search for push on retaining rings if that is what you require.
Product Data

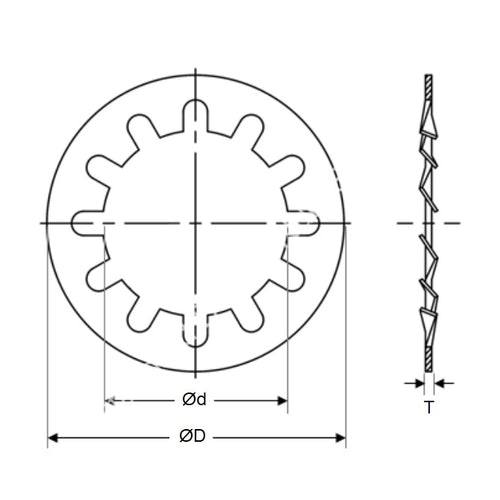

- Nominal Inside Diameter
:
16.00
mm
(Equiv. 0.63 in.) - Outside Diameter
27.2
mm
(Equiv. 1.071 in.) - Material Thickness (T)
1.30
mm
(Equiv. 0.051 in.) - Nominal Screw Size M16, 5/8
- Actual ID (Ref) 16.4 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000823
- 91106A139
- WASCA WLISZNP16
