ECL-0150-0160-C - Datasheet
MBA
Category Information

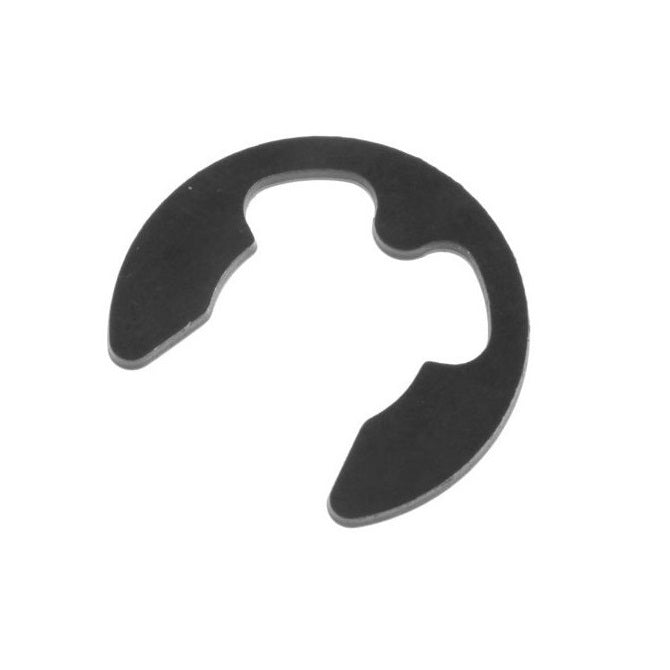

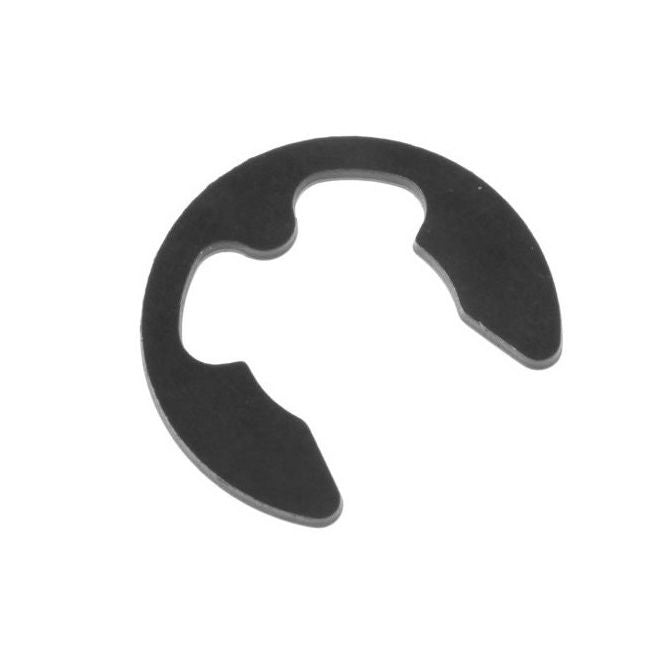

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
16.00
mm
+ 6.00 / - 0.00
(Equiv. 0.63 in.) - Groove Dia. (Dg)
15.00
mm
+ 0.00 / - 0.11
(Equiv. 0.591 in.) - Clip Thickness (T)
1.50
mm
+/ - 0.03
(Equiv. 0.059 in.) - Clip OD Loose (D1) 28.60 mm
- Groove Width (W) 1.55 mm
- Maximum Rec. Shaft Dia (S) 24.00
- Clip OD in groove (C1) 29.40 mm
- Loose Clip ID (A) 12.61 mm
- Min. Extension (n) 3.00
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98543A120
- NoCor DE-150
- Cirteq RA15.0
- 1500-0150
- 1500-0150APP
- 15000150APP
- D1500-0150APP
- D15000150APP
- DE150
