P-030H-016-125C - Datasheet

MBA

Category Information

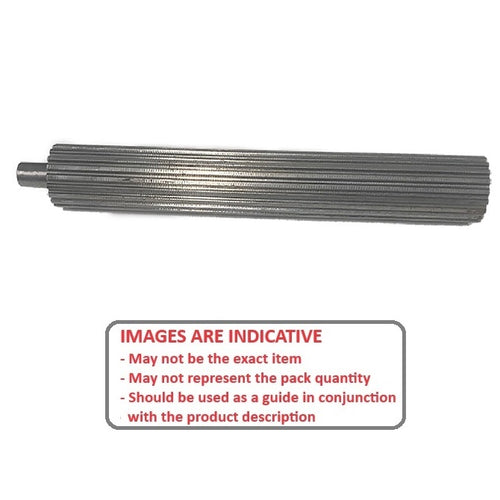

Pulleys - Metric Timing Stock - 3.000mm Pitch - HTD - Carbon Steel

Carbon Steel HTD 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

Product Data

  • Number of Teeth : 16

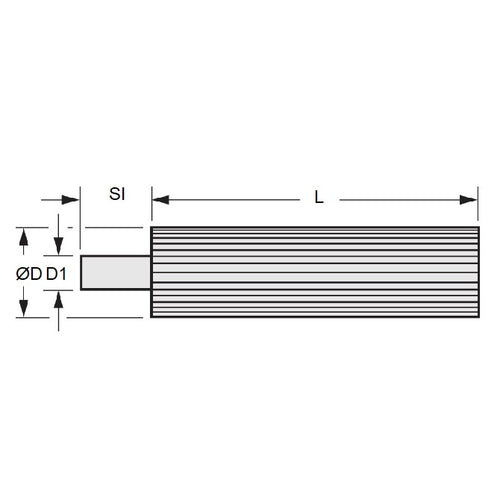

  • Min. Usable Length (L) 125.0 mm
    (Equiv. 4.921 in.)
  • Pitch Diameter (PD) 15.30 mm
    (Equiv. 0.602 in.)
  • Outside Diameter (OD) 14.52 mm
  • Shank Diameter (D1) 12.70 mm
  • Shank Length (Sl) 19.0 mm
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 16-3M-PS5S
  • 163MPS5S
  • A6C22M016TM13
