Miniature Bearings Australia
BV16-01600-SPB1600 - Datasheet
MBA
Category Information

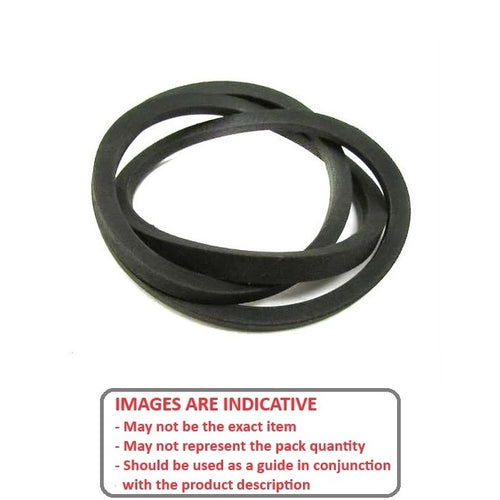

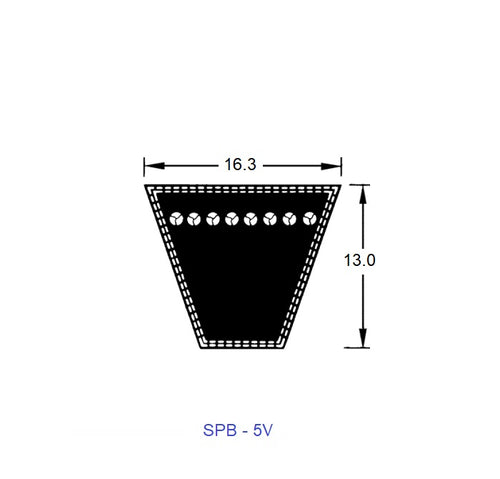

Belts - Wedge - 16.3 x 13.0mm - SPB 5VSPB 5V 16.3 x 13.0mm Wedge Belts. 16.3mm Top Width x 13.0mm Height.
- Wedge belt are specialized V-belt designed with a more compact, wedge-shaped profile to transmit higher power in smaller, space-constrained drive systems.
- Designed to offer greater load-carrying capacity and efficiency compared to standard V-belts, Ideal for demanding applications like automotive engines, compressors, and industrial machinery.
- Also known as a narrow V-belt
- Sizes are nominal and may vary slightly.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch Length
:
1600.0 (63.0 in.)
mm
(Equiv. 62.992 in.) - Type Standard - Wedge Belt
- Re-Inforcement Polyester
- Material Natural Rubber - Fabric Jacket
Product Compliance and Data
Additional Resources
Cross References
- BSPB1600
