AD-2016 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 16.0 mm
      (Equiv. 0.63 in.)
    • Thread (C) M20 Extra Fine (20x1.5mm)
    • Length (A) 148.8 mm
      (Equiv. 5.858 in.)
    • Shaft Size (D) 6.0 mm
    • Max. Effective Mass 200 Kg
    • Max. Nm Per Cycle 39 Nm
    • Max. Nm Per Hour 30000 Nm
    • Max Impact Speed 3.5 m/s
    • Weight 230 g
    • Body Length (B) 117.0 mm
    • Tip Diameter (C) 17.8 mm
    • Tip Length (E) 15.8 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

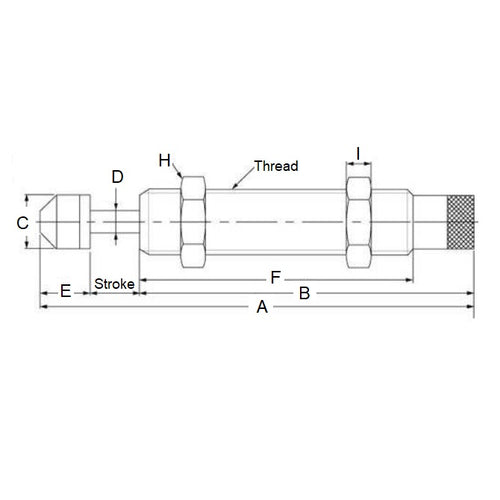

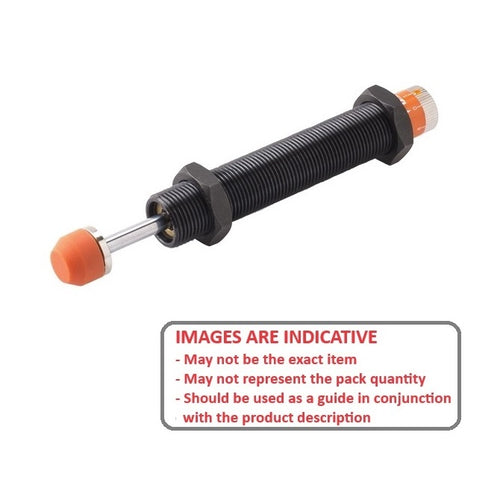

      AD-2016DiagramAD-2016Image
