SPLA073-016-060-ACI - Datasheet
MBA
Category Information

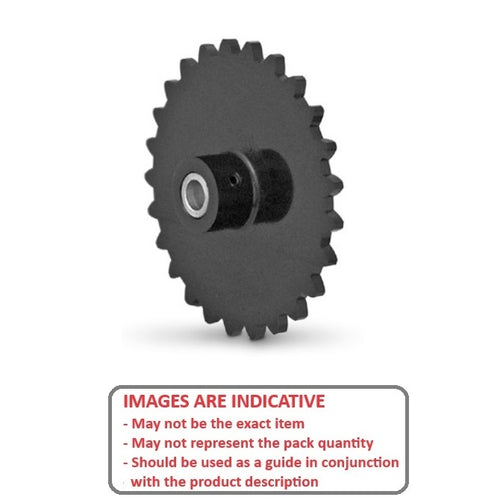

Sprockets - Ladder Chain 7.264mm Pitch Size 18Ladder Chain 7.264mm Pitch Size 18 Sprockets. Plastic, bronze and steel.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 16
- Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Overall Width (L)
12.70
mm
(Equiv. 0.5 in.) - Pitch Diameter 37.20 mm
- Type Brass Insert - Set Screw
- Hub Diameter 16.00 mm
- Tooth Width (Fw) 2.54
- Material Acetal with Bore Insert
Product Compliance and Data
Additional Resources
Cross References
- A 6Z 8M181606
- A6Z8M181606
