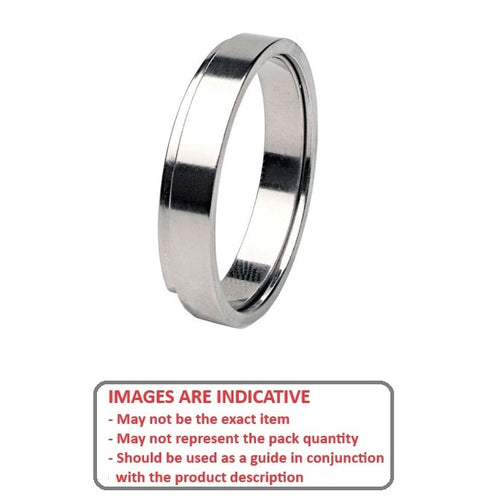

OKSD50-16X20-OUK - Datasheet
MBA
Category Information
Locking ElementsLocking Elements. 2.4 to 2200 Nm, 6-80mm Bores
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- ETG 100 High Strength Steel for sizes up to 55mm bore
- C60 Steel for sizes over 55mm bore
- Recommended machining tolerances Shaft h8, Hub H8
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

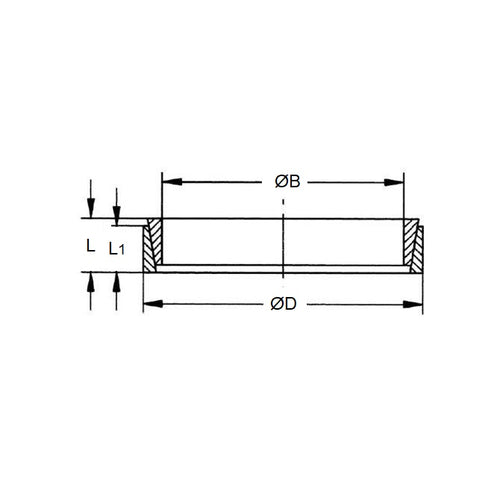

- Inside Diameter (B)
:
16
mm
(Equiv. 0.63 in.) - Outside Diameter (D)
20
mm
(Equiv. 0.787 in.) - Torque Nm 27.30 Nm
- L 6.30 mm
- L1 5
- Shaft Pw 105.0
- Hub N/mm 85.00
- Tension FA 25400
Product Compliance and Data
Additional Resources
Cross References
- OKSD50-16X20
- OKSD5016X20
