G017B-016-V24-064-079-CG - Datasheet
MBA
Category Information
Gears - Spur - Hubbed - 24DP - 14.5 Degree - SteelSteel 14.5 Degree 24DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 1.05833 (1/24 in.). 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 24 teeth
- 24 Diametrical Pitch. Approx 3.33mm between the teeth.

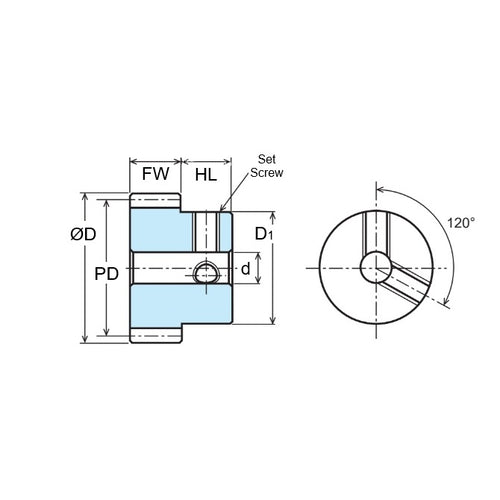

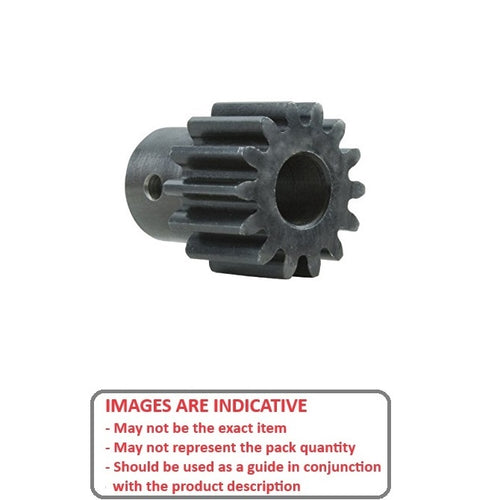

Product Data
- Number of Teeth : 16
- Pitch Circle Diameter (PD)
16.942
mm
(Equiv. 0.667 in.) - Bore (d)
7.938
mm
(Equiv. 0.313 in.) - Outside Diameter (OD) 19.050 mm
- Face Width (FW) 6.350 mm
- Type Hubbed
- Hub Diameter (D1) 13.716 mm
- Hub Projection (HL) 7.874 mm
- Locking Method Set Screw
- Quality Commercial
- Material Steel 0.20 carbon steel with no subsequent treatment
Product Compliance and Data
Additional Resources
Cross References
- G017B16V24064079CG
