Miniature Bearings Australia
CFB016-15-040M-R60 - Datasheet
MBA
Category Information

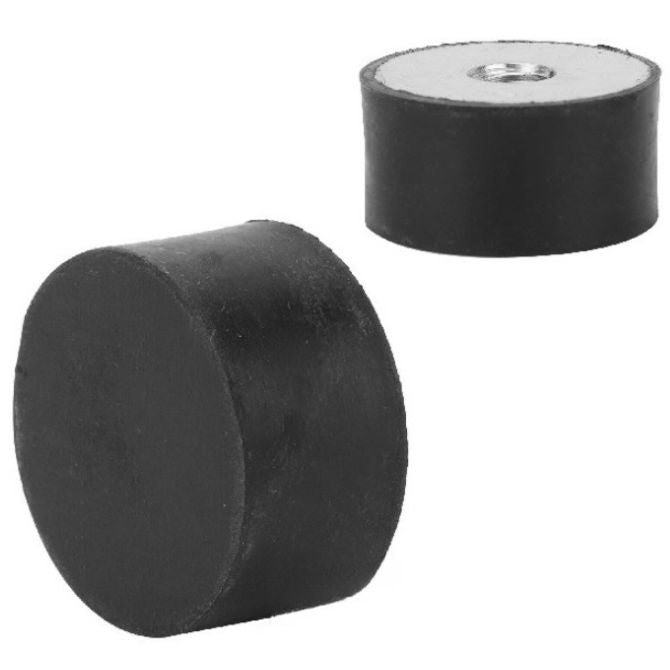

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D) : 16.00 mm
- Body Height (H) 15.00 mm
- Thread Size M4x0.7
- Shore Hardness 60
- Thread Depth (L2) 4.0 mm
- Max Shear Load 268 Kg (lbs)
- Configuration Female to Blank
- Other Info 85.00
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-DE1615-4
- CDE16154
