REM-160-R-PP-F - Datasheet
Iglidur
Category Information

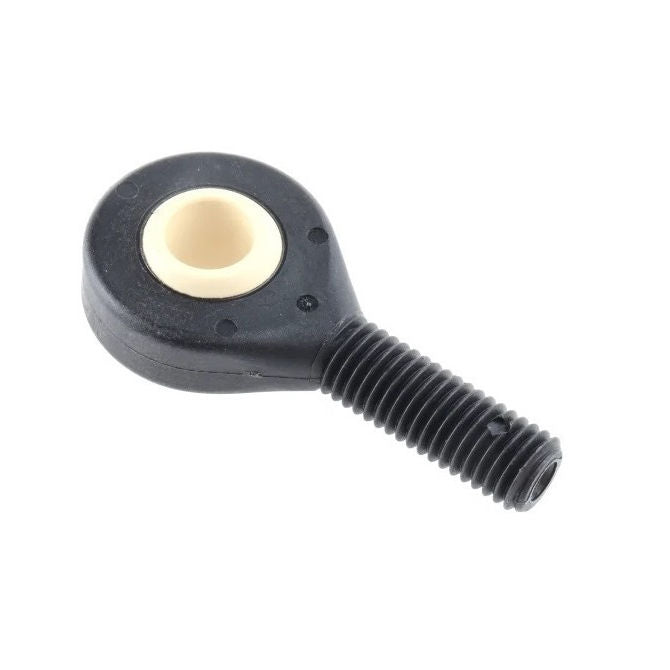

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
16.000
mm
(Equiv. 0.63 in.) - Overall Length (L)
88.00
mm
(Equiv. 3.465 in.) - Thread Size M16x1.5 Right
- Min. Thread Length (l2) 37.00 mm
- Head Width (W) 15.00 mm
- Eye Width (W1) 21.00 mm
- Head Diameter (D) 42.00 mm
- Centre Height (l1) 66.00 mm
- Grease Nipple No
- Max Angle of Pivot 23 °
- Max Torque Strength 40.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- IGUS KARM-16 F
- Igus KARM-16F
- KARM16F
