CS-1600-0350-11-S4-G - Datasheet
MBA
Category Information

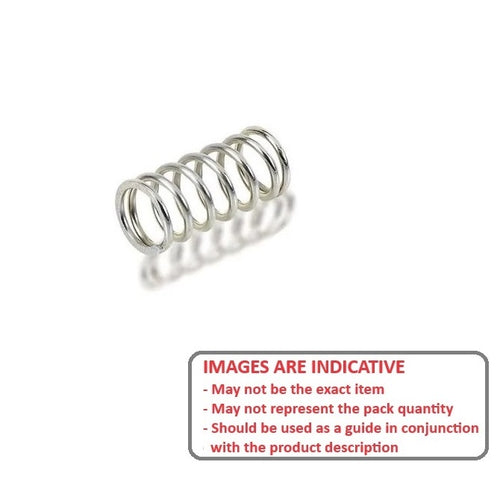

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
16.00
mm
(Equiv. 0.63 in.) - Free Length (L0)
35.0
mm
(Equiv. 1.378 in.) - Wire Diameter (d)
1.10
mm
(Equiv. 0.043 in.) - Loaded Height (L1) 19.30 mm
- Load at L1 7.60 N
- Rate (P/f) 0.5 N/mm
- Solid Height (Sh) 12.10 mm
- Approx. ID 13.8 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 13.80 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-UF16-35
- CUF1635
