6202-Z-T9H-ACO-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

Single shielded economy bearing with a high speed polyamide retainer and light anti-rust lubricant

  • ID (d) : 15.000 mm
  • O.D. (D) 35.000 mm
  • Width (B) 11.000 mm
  • Precision Grade Economy
  • Closure Type Z
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Oil
  • Lubrication Name ACO Anti Corrosion Oil Film
  • Basic Part 6202
  • Limiting Speed 36480
  • Cage Type Polyamide
  • Static Load Rating KGf 363.8
  • Dynamic Load Rating KGf 740
  • Radii 0.60 mm
  • Inner Shoulder (UI) 21.70mm
  • Outer Shoulder (UO) 31.40 mm
  • Number of Balls 8
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Z
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • A.M Sachs® - 3.2 - Front Bearing
  • A.M Sachs® - 3.2 - Replacement Rear Bearing
  • A.M Sachs® - 3.2 All Models - Replacement Rear Bearing
  • Aerrow-Quadra® - 100 - 2 Stroke - Front Bearing
  • Aerrow-Quadra® - 100 All Models - Replacement Rear Bearing
  • Aerrow-Quadra® - 50 - 2 Stroke - Front Bearing
  • Aerrow-Quadra® - 50 - 2 Stroke - Replacement Rear Bearing
  • Aerrow-Quadra® - 50 All Models - Replacement Rear Bearing
  • Aerrow-Quadra® - 52 - 2 Stroke - Front Bearing
  • Aerrow-Quadra® - 52 - 2 Stroke - Replacement Rear Bearing
  • BMZ Boat - AKA Polini - 21 - Replacement Front Bearing
  • CMB - RS - 21 - Replacement Rear Bearing
  • Enya® - 120GP - Replacement Rear Bearing
  • Enya® - GP - 40 - Replacement Rear Bearing
  • Enya® - R - 60 - Replacement Rear Bearing
  • Enya® - R 4C - 60 - Replacement Rear Bearing
  • Enya® - R 4C - 90 - Replacement Rear Bearing
  • Enya® - R120 - 4 Stroke - Replacement Rear Bearing
  • Enya® - R90 - 4 Stroke - Replacement Rear Bearing
  • OPS - 21 - Replacement Rear Bearing
  • OPS - 90 - Replacement Rear Bearing
  • Picco® - 90 Marine - 2 Stroke - Replacement Rear Bearing
  • Picco® - P-90 Marine Late Model - 26 - Replacement Rear Bearing
  • Picco® - P-90 Marine Late Model - 80 - Replacement Rear Bearing
  • Zenoah® - 80 - Replacement Rear Bearing
  • Zenoah® - G62 - Front and Rear Bearing
  • Zenoah® - G62 Air - 26 - Replacement Rear Bearing
  • Zenoah® - GT - 260 26CC - Replacement Rear Bearing

Cross References

  • WIB 6202-Z-T9H-C3WWAF2
  • WIB 6202-Z-T9H-C3-WW-AF2
  • 6202T9HZACOECO
  • 6202ZT9HC3WWAF2
  • 6202ZT9HACOECO
  • 6202 Basic Size Ref
View full details

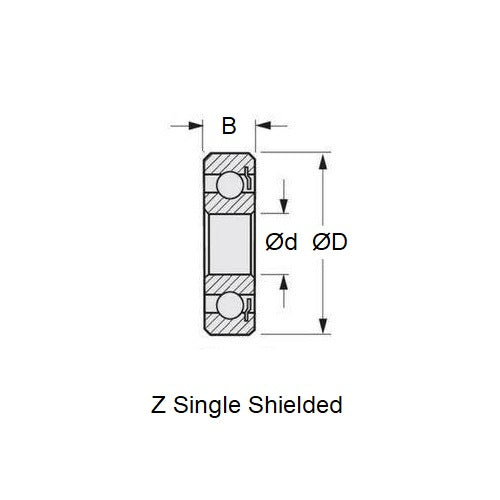

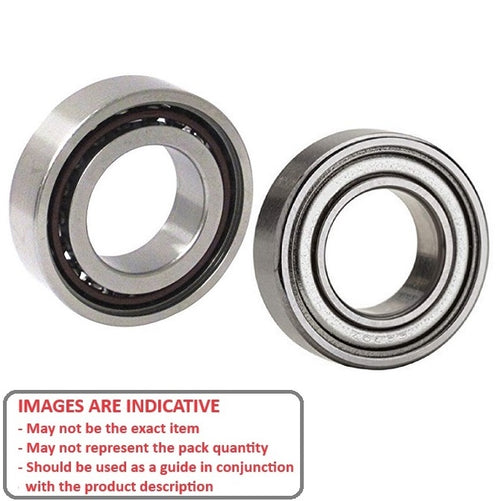

6202-Z-T9H-ACO-ECODiagram6202-Z-T9H-ACO-ECOImage
