6002-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

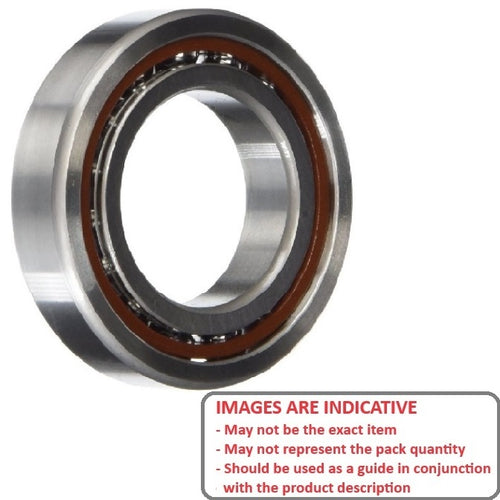

High speed polyamide cage. Ceramic balls.

ID (d) : 15.000 mm
(Equiv. 0.591 in.)
OD (D) 32.000 mm
(Equiv. 1.26 in.)
Width (B) 9.000 mm
(Equiv. 0.354 in.)
Precision Grade Economy
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 6002
Limiting Speed 34960
Cage Type Polyamide
Static Load Rating KGf 220.4
Dynamic Load Rating KGf 433.2
Radii 0.30 mm
Inner Shoulder (UI) 20.20mm
Outer Shoulder (UO) 28.70 mm
Number of Balls 9
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
CMB - 20 All Models - Rear Bearing 15-32-9mm
CMB - 21 - Rear Bearing 15-32-9mm
CMB - 65 All Models - Rear Bearing 15-32-9mm
CMB - CAM - 90 - Rear Bearing 15-32-9mm
CMB - CAM Marine - 45 - Rear Bearing 15-32-9mm
CMB - H Racing - Green Head - 90 - Rear Bearing 15-32-9mm
Enya - 2C 733 - 46 - Rear Bearing 15-32-9mm
Enya - 4C - 80 - Rear Bearing 15-32-9mm
Enya - 4C - Old - 40 - Rear Bearing 15-32-9mm
Enya - III - 35 - Rear Bearing 15-32-9mm
Fox - 0.17 - Rear Bearing 15-32-9mm
HB - 50 All Models - Rear Bearing 15-32-9mm
K.B - 45 All Models - Rear Bearing 15-32-9mm
K.B - 82 All Models - Rear Bearing 15-32-9mm
K.B - IB - 61 - Rear Bearing 15-32-9mm
K.B - Inboard - 11 - Rear Bearing 15-32-9mm
K.B - Inboard Marine Late Model - 1 - Rear Bearing 15-32-9mm
K.B - Inboard Marine Late Model - 82 - Rear Bearing 15-32-9mm
Kraft - 61 - 67 - Rear Bearing 15-32-9mm
Mac - 45 All Models - Rear Bearing 15-32-9mm
Mac - 67 All Models - Rear Bearing 15-32-9mm
Magnum Power - 120 4 Stroke - 21 - Rear Bearing 15-32-9mm
MVVS - 21 All Models - Rear Bearing 15-32-9mm
MVVS - Twin - 40 - Rear Bearing 15-32-9mm
OS - FS FI Surpass II - 70 - Rear Bearing 15-32-9mm
OS - FS II Surpass With Pump 91 - Rear Bearing 15-32-9mm
OS - FS RC Surpass 4C - 61 - Rear Bearing 15-32-9mm
OS - FS Supercharge - 120 - Rear Bearing 15-32-9mm
OS - FS Surpass II 4C - 12 - Rear Bearing 15-32-9mm
OS - FS Surpass RC 4C 91 - 48 - Rear Bearing 15-32-9mm
OS - FS-120 II Surpass - Rear Bearing 15-32-9mm
OS - FS-120 Non Surpass - 91 - Rear Bearing 15-32-9mm
OS - FS-120 Surpass III With Pump - Rear Bearing 15-32-9mm
OS - FS-120E Surpass - Rear Bearing 15-32-9mm
OS - FSR-M ABC RC - 50 - Rear Bearing 15-32-9mm
OS - FT Twin RC 4C - 160 - Rear Bearing 15-32-9mm
OS - FT Twin RC 4C - 240 - Rear Bearing 15-32-9mm
OS - H Old - 40 - Rear Bearing 15-32-9mm
Picco - Hydro - 45 - Rear Bearing 15-32-9mm
Rossi - New Marine - 21 - Rear Bearing 15-32-9mm
Thunder Tiger - SF - 120 - Rear Bearing 15-32-9mm
Thunder Tiger - SF - 54 - Rear Bearing 15-32-9mm

Cross References

BOCA MR6002C-TH9-C3
MR6002CTH9C3
6002 Basic Size Ref
