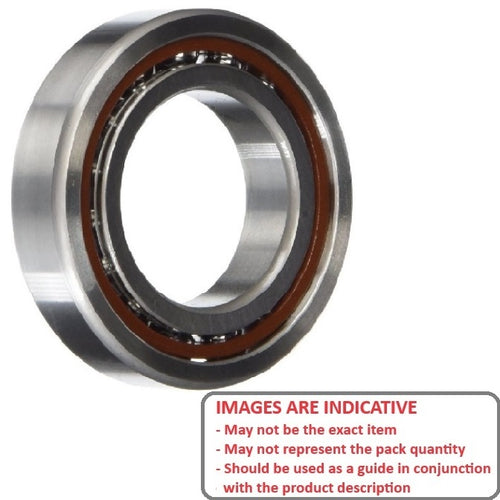

6002A-CSN-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data
Non ISO Width. High speed polyamide cage. Ceramic balls.
- ID (d) : 15.000 mm
- O.D. (D) 32.000 mm
- Width (B) 8.000 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6002A
- Limiting Speed 36480
- Cage Type Polyamide
- Static Load Rating KGf 195.3
- Dynamic Load Rating KGf 386.8
- Radii 0.30 mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls 9
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- ASP® - 4C - 80 - Rear Bearing 15-32-8mm
- ASP® - 80 - Rear Bearing 15-32-8mm
- HB - PDP New - 61 - Rear Bearing 15-32-8mm
- HP - 30 Old Models Except GoldSilver - Rear Bearing 15-32-8mm
- HP - 46 Old Models Except GoldSilver - Rear Bearing 15-32-8mm
- HP - Old/1975 - 40 - Rear Bearing 15-32-8mm
- HP - Old/1975 - 61 - Rear Bearing 15-32-8mm
- Kalistratov® - K - 45 - Rear Bearing 15-32-8mm
- Magnum Power® - FS-AR 4C - 28 - Rear Bearing 15-32-8mm
- Magnum Power® - XL 120 RFS - 61 - Rear Bearing 15-32-8mm
- Magnum Power® - XL 120-AR II - 75 - Rear Bearing 15-32-8mm
- Magnum Power® - XL 91 RFS - 30 - Rear Bearing 15-32-8mm
- Magnum Power® - XL70RFS - 91 - Rear Bearing 15-32-8mm
- Moki® - Marine - 40 - Rear Bearing 15-32-8mm
- MVVS - 21 All Models - Rear Bearing 15-32-8mm
- MVVS - GFS/R-ABC-RC - 40 - Rear Bearing 15-32-8mm
- OPS - Old - 30 - Rear Bearing 15-32-8mm
- OS Engines® - FS - 40 - Rear Bearing 15-32-8mm
- OS Engines® - FS 70 II Surpass - 20 - Rear Bearing 15-32-8mm
- OS Engines® - FS 70 II Surpass - 40 - Rear Bearing 15-32-8mm
- OS Engines® - FS 70 Surpass RC 4C - 20 - Rear Bearing 15-32-8mm
- OS Engines® - FS RC 4C - 40 - Rear Bearing 15-32-8mm
- OS Engines® - FS RC 4C - 91 - Rear Bearing 15-32-8mm
- Picco® - Blue Head - Q500 - Rear Bearing 15-32-8mm
- Picco® - EXR - Q500 - Rear Bearing 15-32-8mm
- Picco® - EXR New Late - 67 - Rear Bearing 15-32-8mm
- Picco® - EXR Old 1995 - 80 - Rear Bearing 15-32-8mm
- PIP Marine - A45 - 28 - Rear Bearing 15-32-8mm
- RJL - 3.5 All Models - Rear Bearing 15-32-8mm
- RJL - 7 All Models - Rear Bearing 15-32-8mm
- Rossi® - 3.5 - Rear Bearing 15-32-8mm
- Rossi® - Old Marine - 21 - Rear Bearing 15-32-8mm
- Russian® - K - 45 - Rear Bearing 15-32-8mm
- Super Tigre® - G - 29 - Rear Bearing 15-32-8mm
- Super Tigre® - Marine - 45 - Rear Bearing 15-32-8mm
- Super Tigre® - ST - 45 - Rear Bearing 15-32-8mm
- Super Tigre® - ST - 51 - Rear Bearing 15-32-8mm
- Super Tigre® - ST K - 60 - Rear Bearing 15-32-8mm
- Super Tigre® - ST Old - 56 - Rear Bearing 15-32-8mm
- Super Tigre® - X - 40 - Rear Bearing 15-32-8mm
- Trophy® - 61 Pro Old - 3.3 - Rear Bearing 15-32-8mm
- Webra® - Blackhead - 60 - Rear Bearing 15-32-8mm
- YS - 45 All Models - Rear Bearing 15-32-8mm
- YS - Air Chamber - 61 - Rear Bearing 15-32-8mm
- YS - FZ 10 - 120 - Rear Bearing 15-32-8mm
- YS - FZ 10 - 91 - Rear Bearing 15-32-8mm
Cross References
- BOCA® MR16002C-TH9-C3
- 6002A
- MR16002CTH9C3
- 6002A Basic Size Ref
