F6702-ZZS - Datasheet
MBA
Category Information

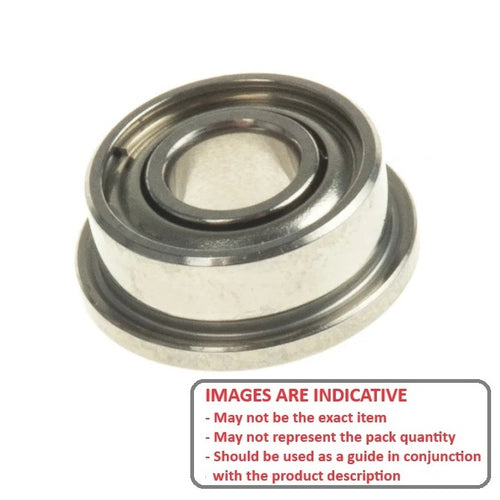

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data
- ID (d)
:
15.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.591 in.) - OD (D)
21.000
mm
+ 0.000 / - 0.010
(Equiv. 0.827 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Flange Diameter (DF) 22.500 mm
- Flange Width (BF) 0.800 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part F6702
- Limiting Speed 11000
- Cage Type Crown
- Static Load Rating KGf 59
- Dynamic Load Rating KGf 96
- Radii 0.20 mm
- Inner Shoulder (UI) 16.86mm
- Outer Shoulder (UO) 19.70 mm
- Number of Balls 14
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
